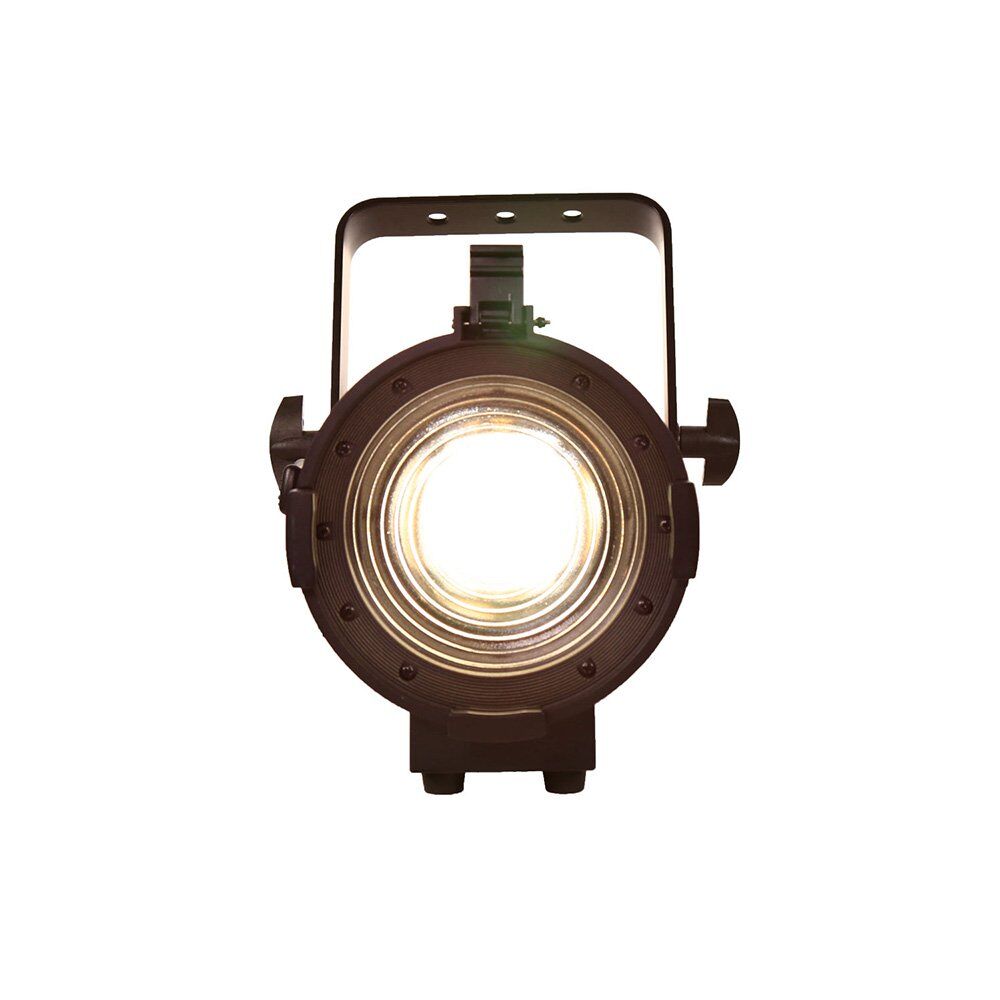

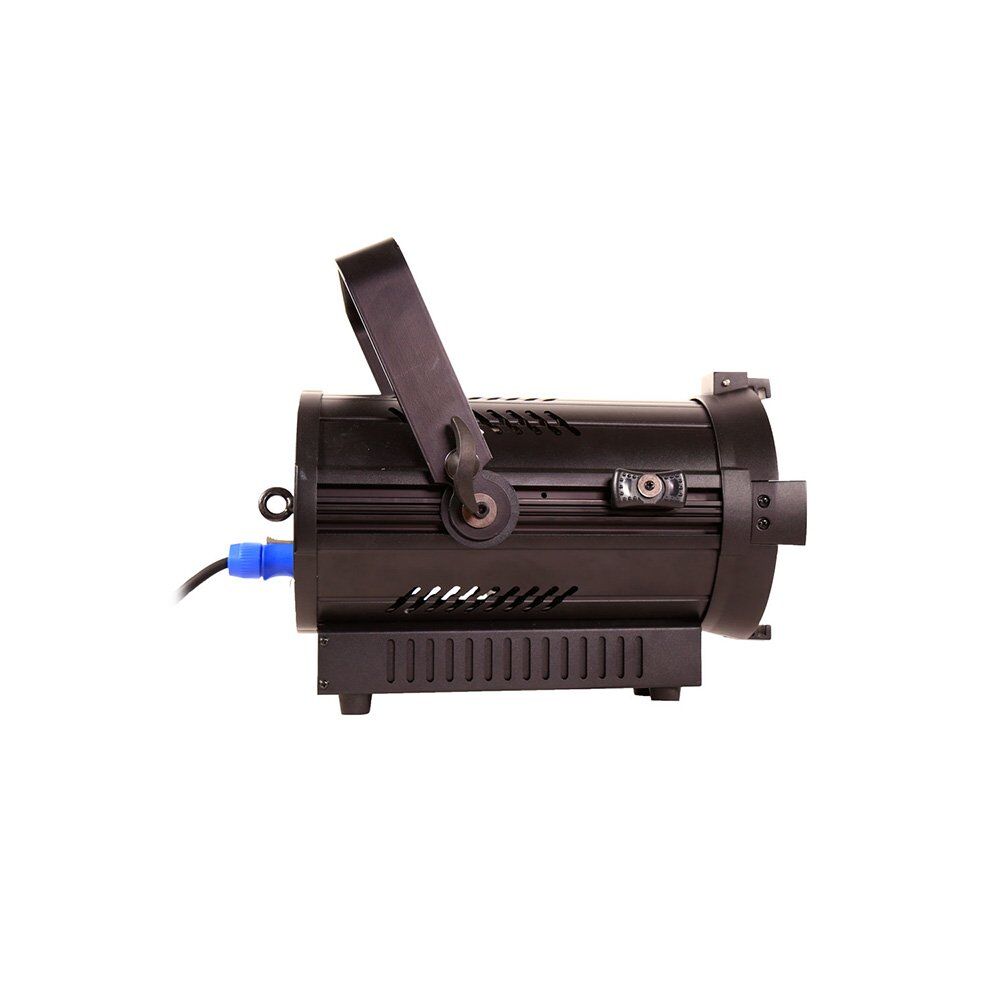

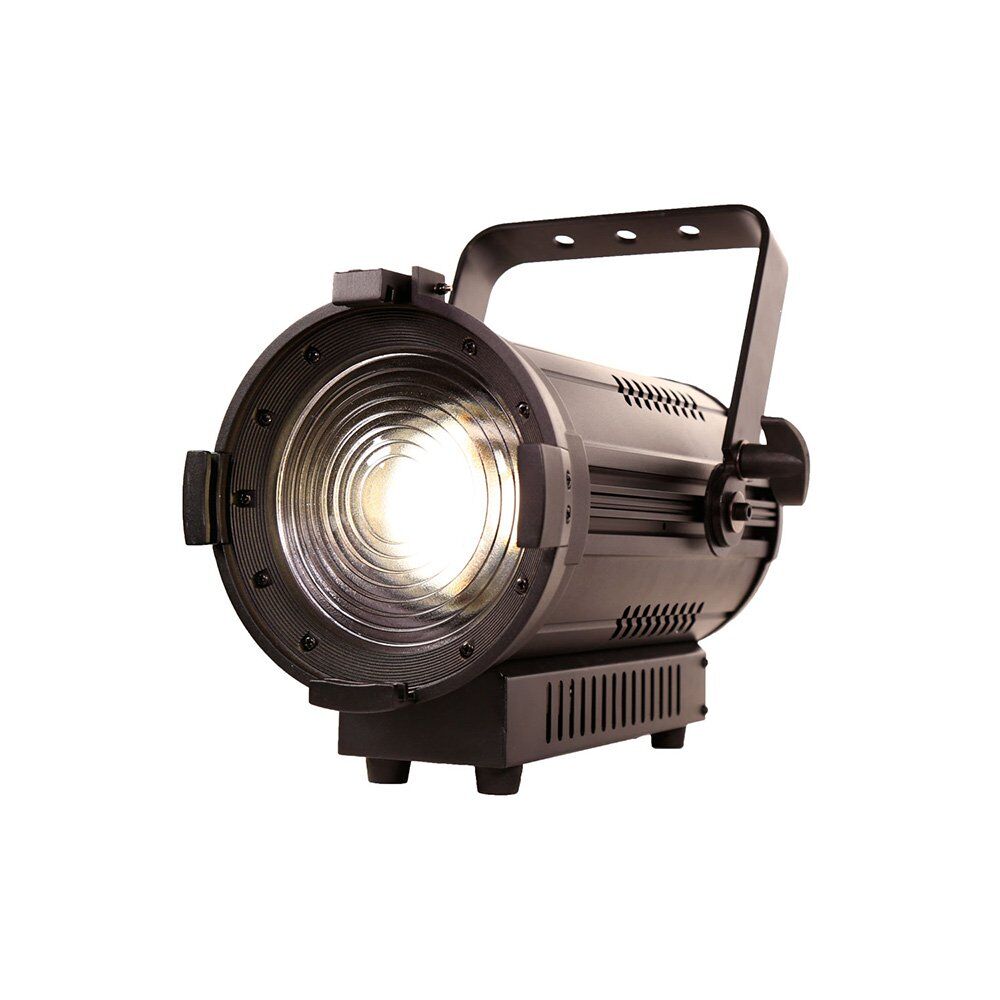

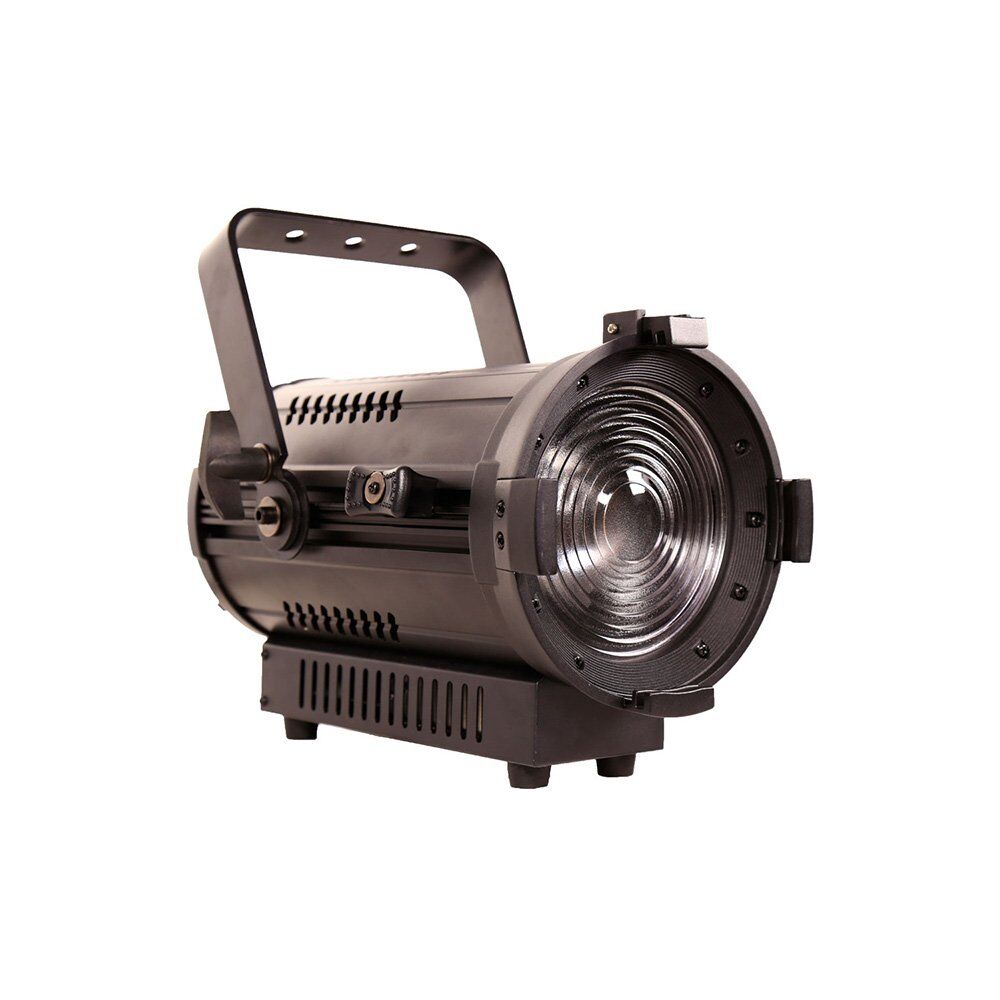

Bi-Color LED Fresnel 100W Fan-less EF100

Compact with excellent performance. High CRI and flicker-free. Fan-less design cooling system gives you absolutely silent shooting environment.

CRI

95+

TLCI

97+

CCT

Bi-Color 3000K – 6000K

Beam angle

15° – 50°

Dimmer

0-100% linearly adjustable

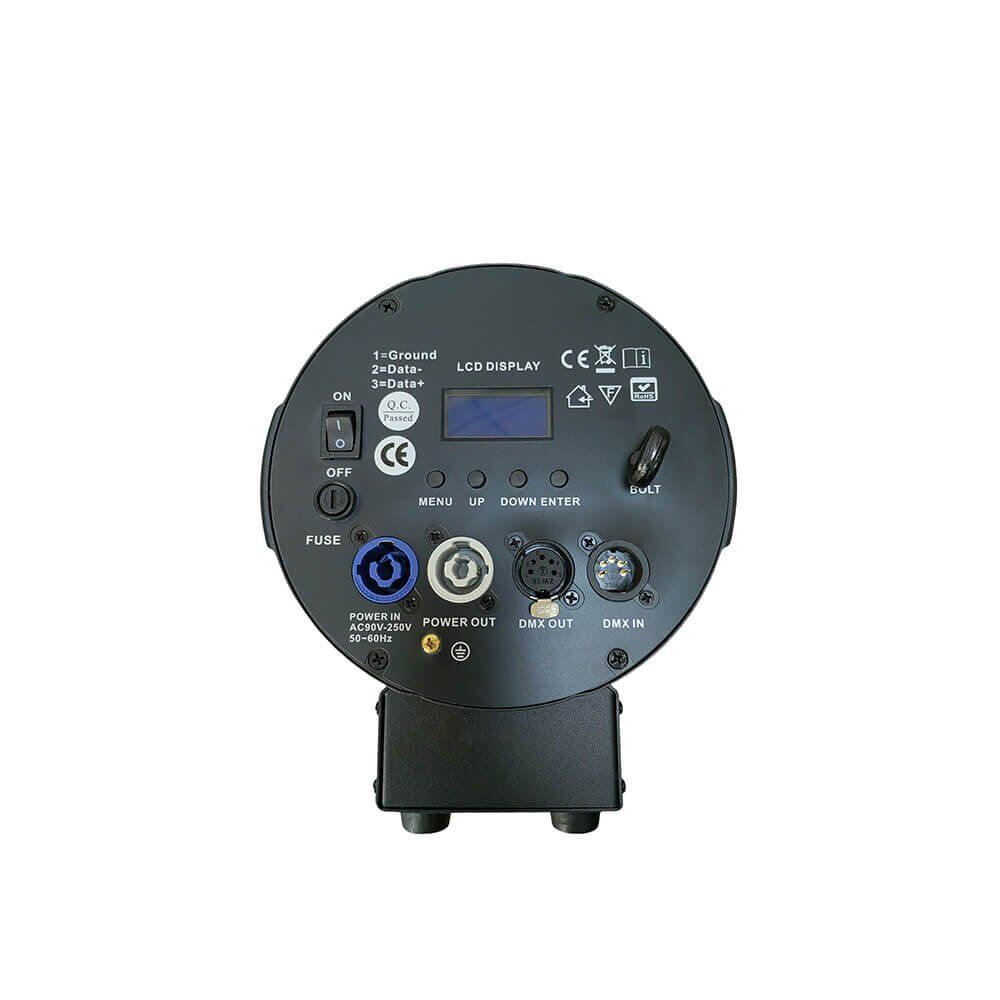

DMX512

XLR 3pins

Power

100W

Cooling System

Fan-less design, air convection for natural heat dissipation

Working Temperature

-10℃ ~ +40℃

Voltage

AC100-240V, 50/60Hz

Dimension

33×25×26 cm

Weight

6.2 kg (w/ barndoors)

Product Details
Main Features:
  • Smooth 16-bit 0-100% linearly adjustable dimming
  • Flicker free operation for Broadcast TV and Film
  • DMX 512, mater and slave, auto running, sound mode, 2CH
  • Fan-less heat dissipation, quiet enough when working
  • 4 kinds of dimming curves available, dimming mode frequency 500Hz-25000Hz adjustable (HD shooting w/o flicker)
  • High speed stroboscopic effect, strobe 1-25times/sec
  • LCD display with button control, easy to use

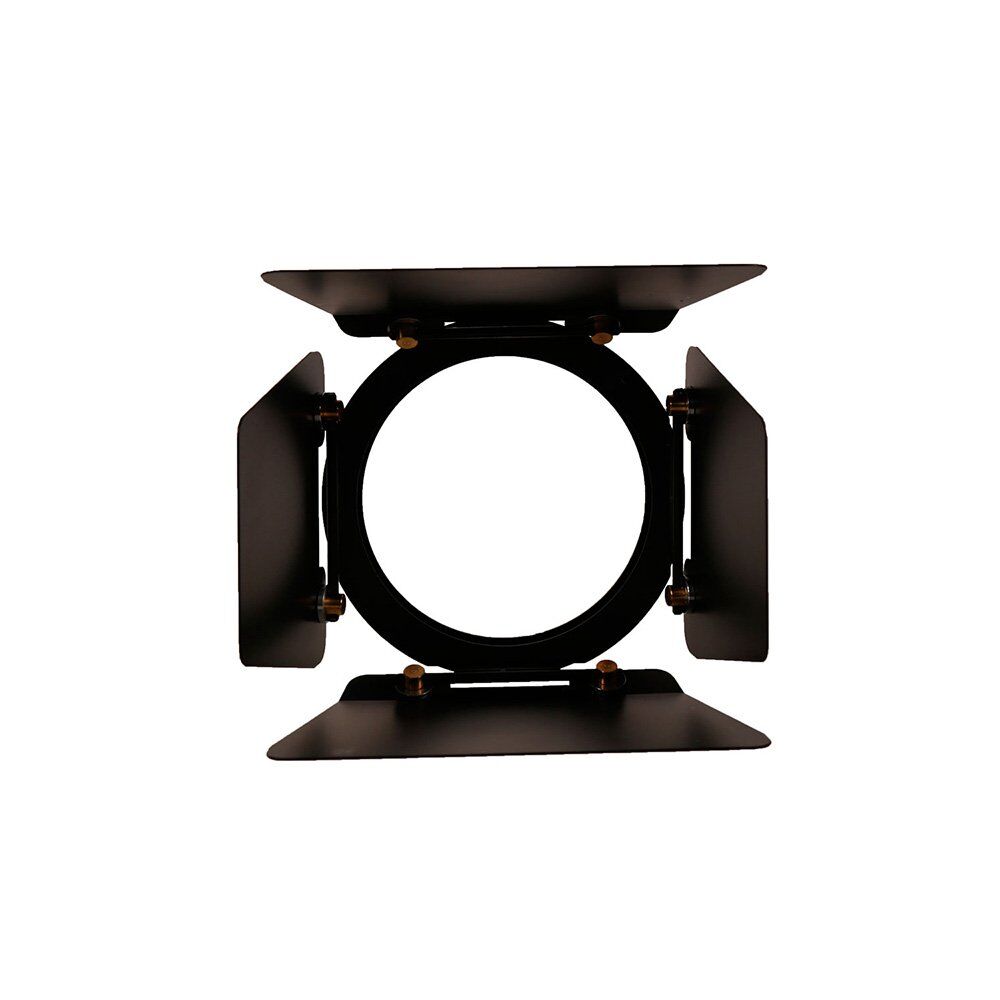

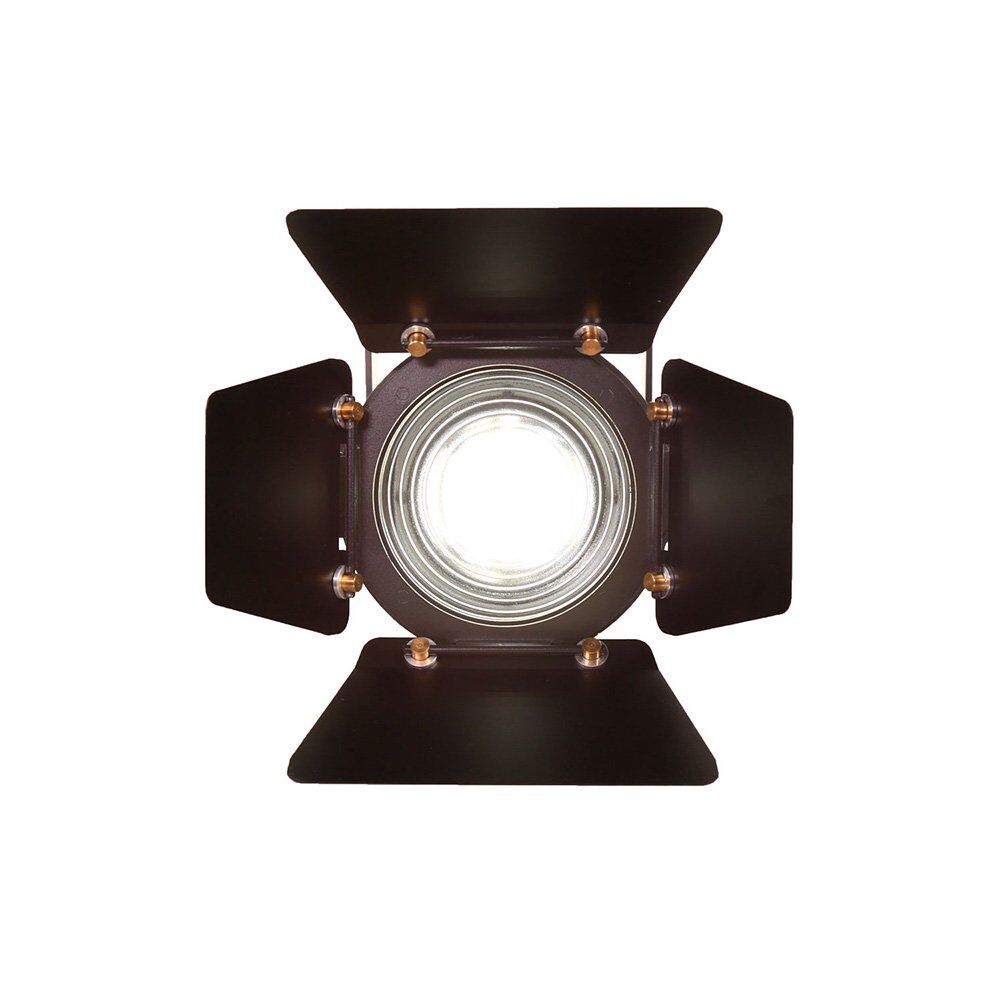

  • Rotating Barndoors included, easy to install and use
Light Test Data





Photometric Data

Spot(15°):

2M

3M 5M

7M

3000K

7114lux / 661fc 3234lux / 301fc 1383lux / 129fc

687lux / 64fc

6000K

10287lux / 956fc 4660lux / 433fc 1974lux / 183fc

980lux / 91fc

Flood(50°):

2M

3M 5M 7M

3000K

2406lux / 223fc 1123lux / 104fc 521lux / 49fc

252lux / 24fc

6000K 3537lux / 329fc 1605lux / 149fc 749lux / 70fc

358lux / 34fc

Standard accessories:
  • Barn doors
  • DMX Cable
  • Power cable
  • Power output connector
