Full Color LED Fresnel 350W Elite300C
| Model | Elite300C |
|---|---|
| Power | 350W |
| CRI | 96+ |
| TLCI | 95+ |
| CCT | 3000K-5600K |
| Beam angle | 10°-50° |
| Dimming | 0-100% linear dimming |

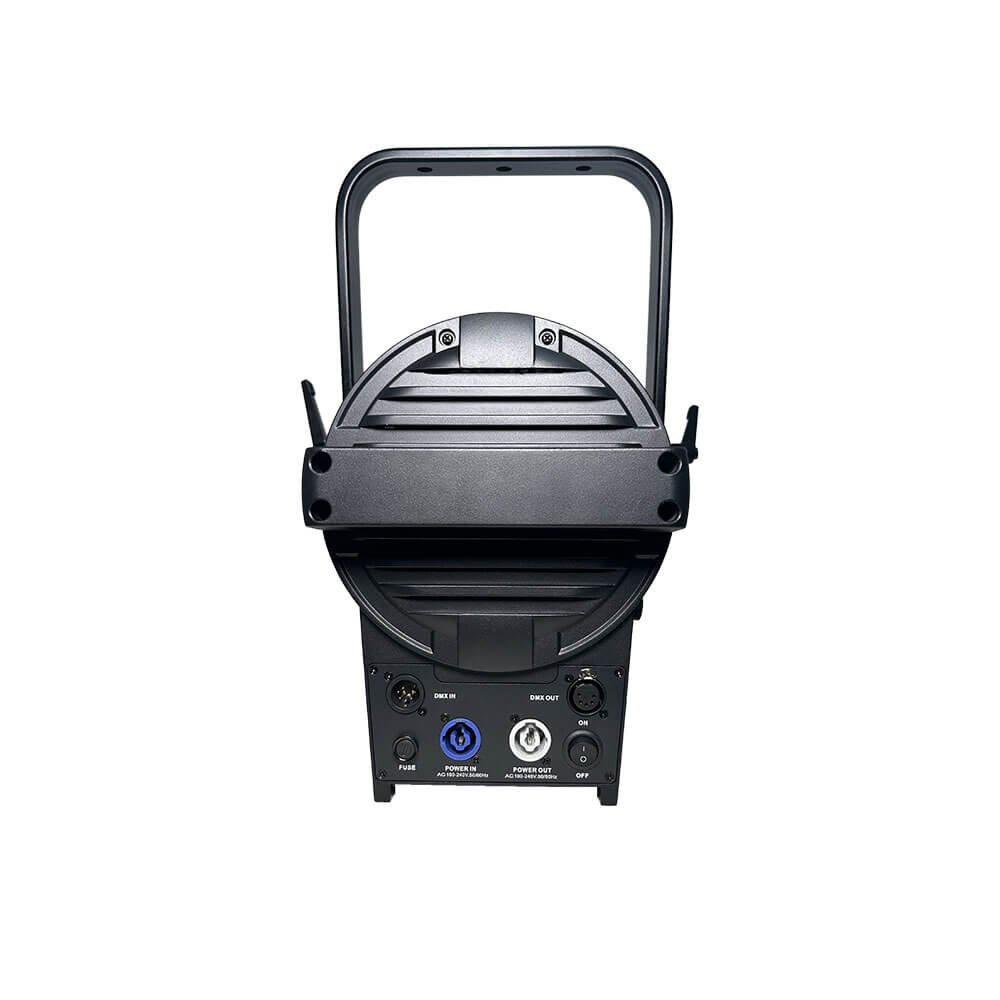

| DMX512 | XLR 5pins |
| Working Voltage | AC100-240V, 50-60Hz |
| Working temperature | -10℃ ~ +40℃ |
| Dimension | 481*324*444mm |
| Weight | 9kg |
| Heat dissipation system | silent fan |
Product Details

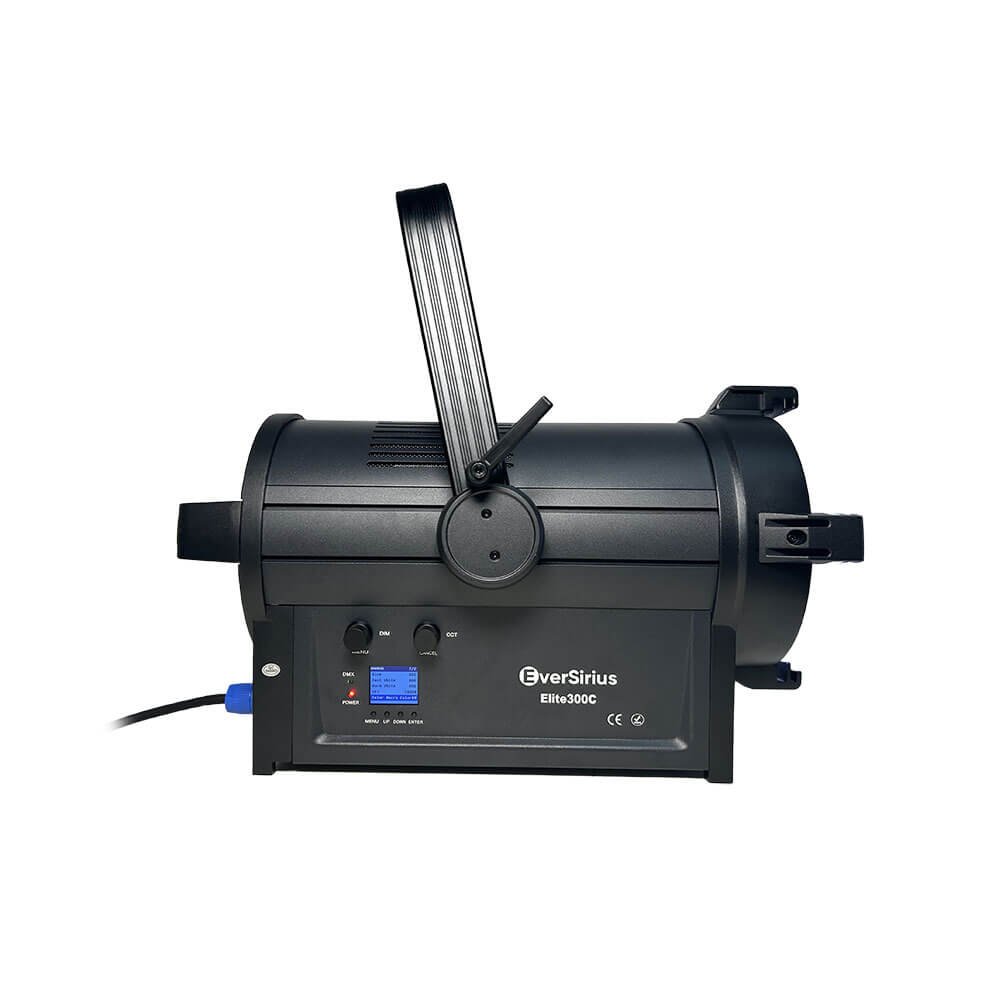

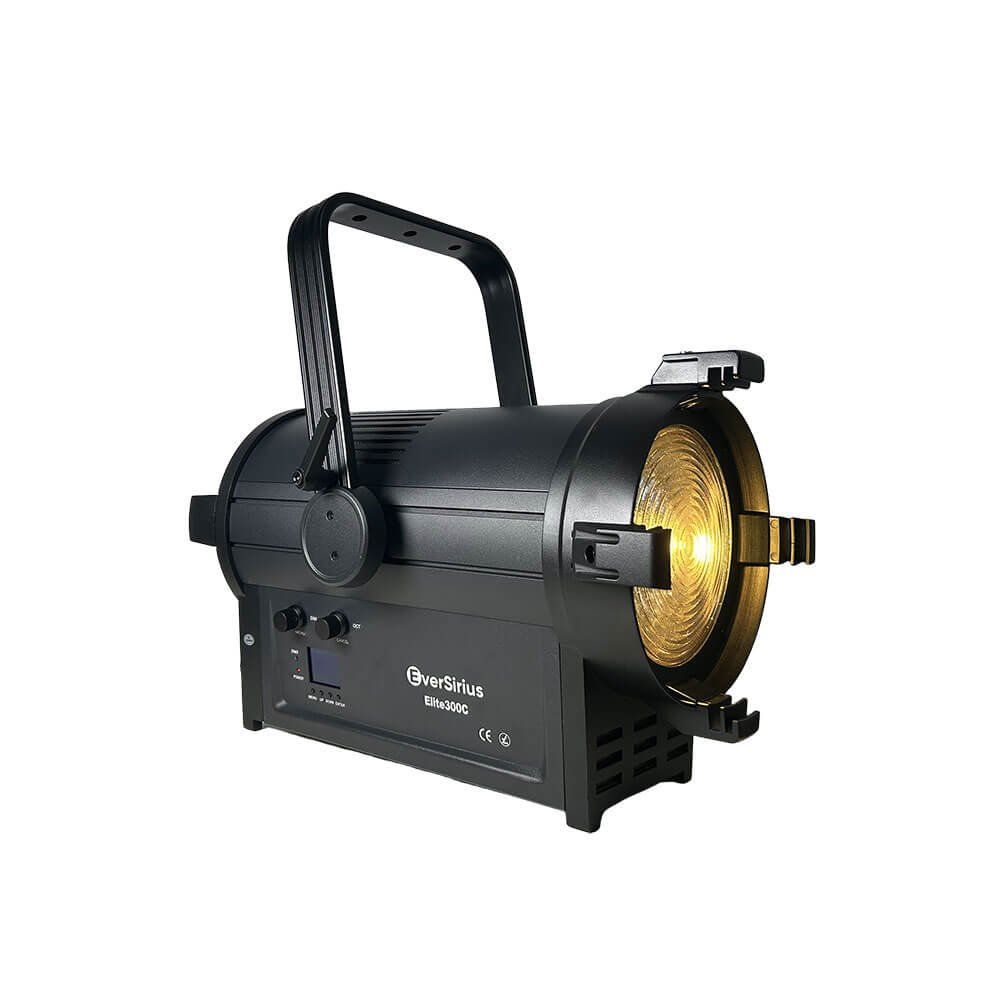

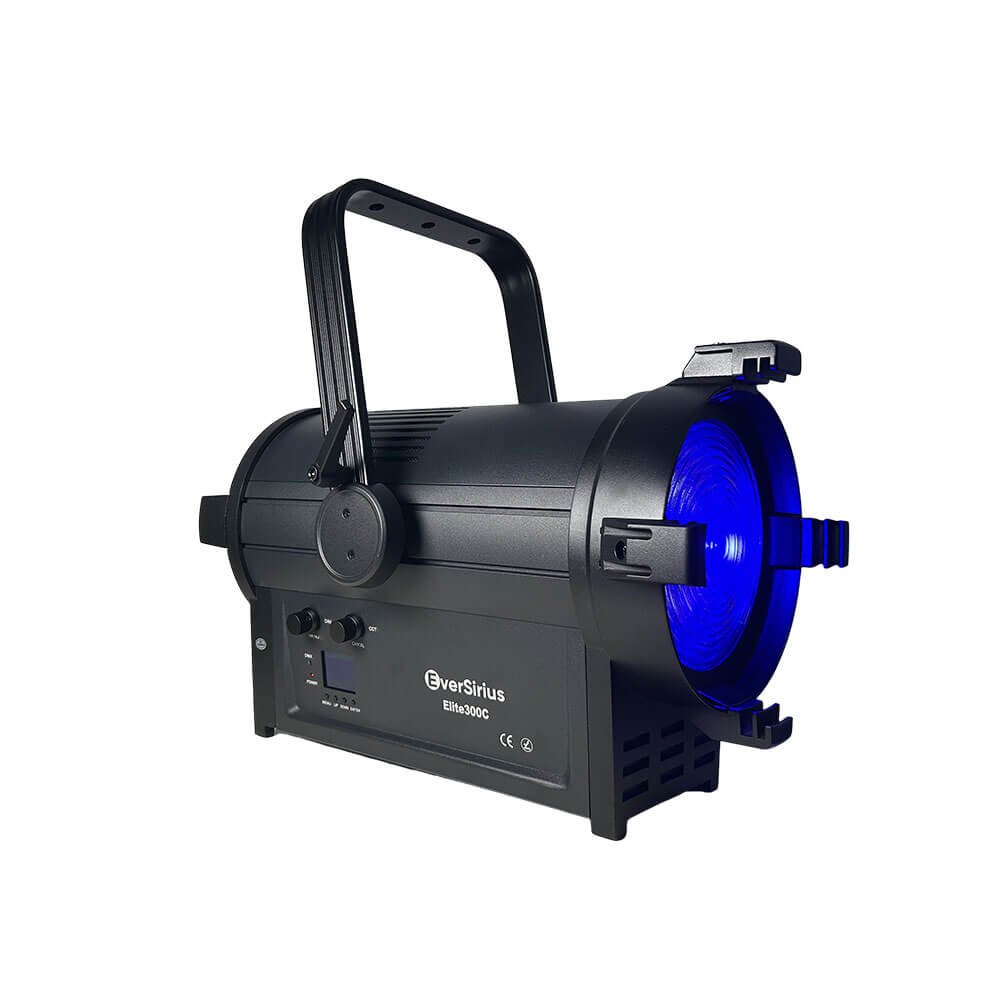

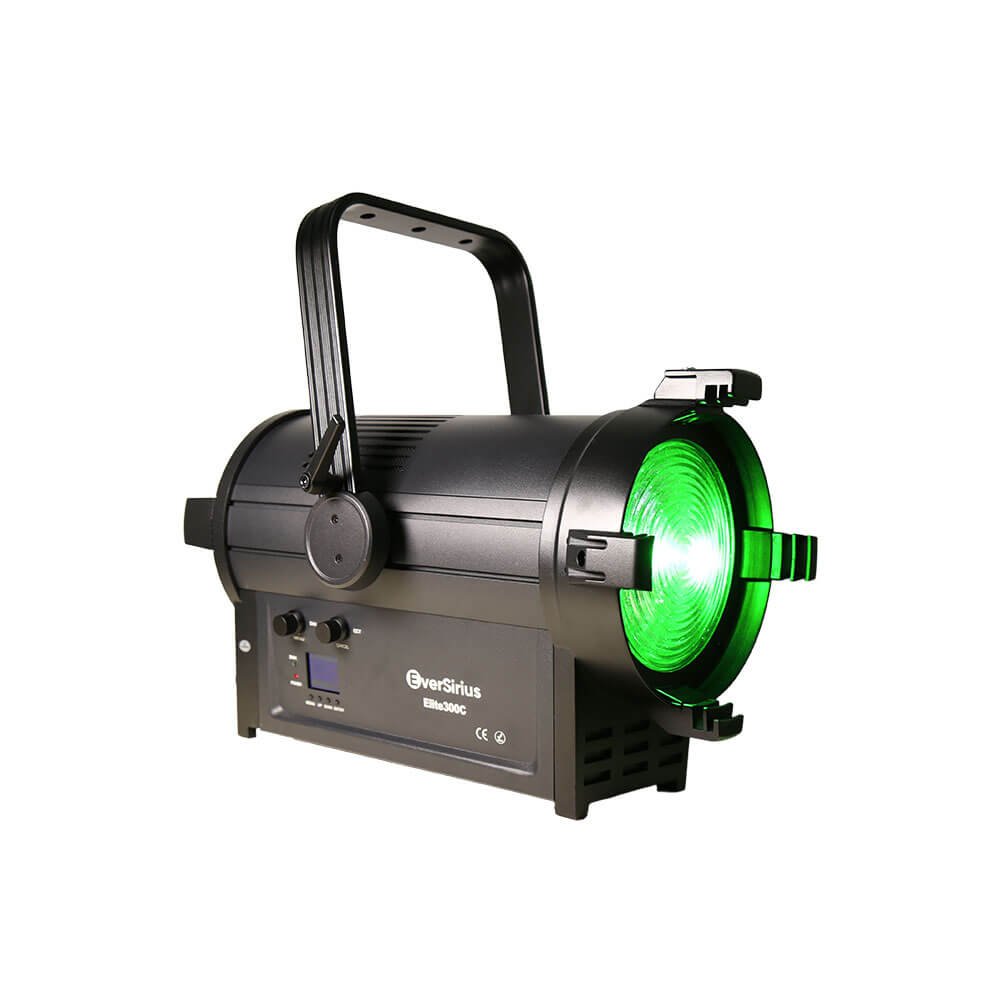

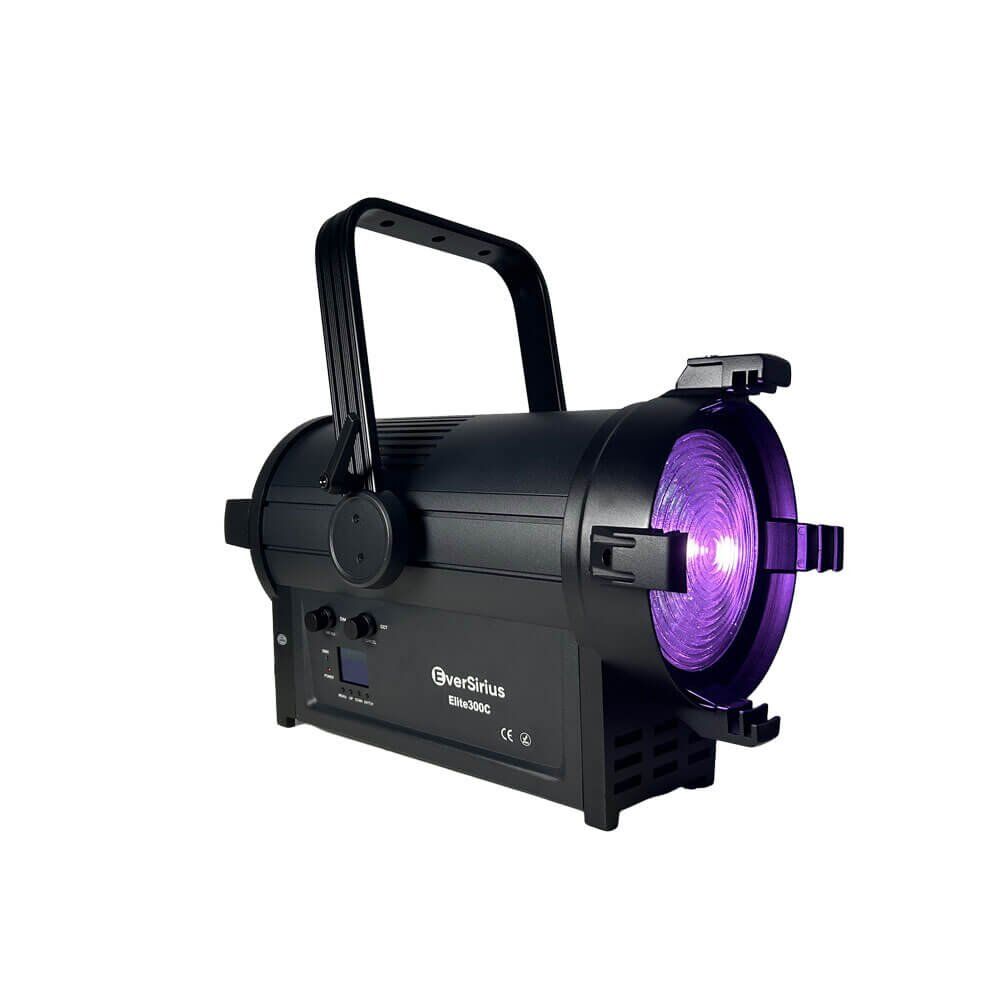

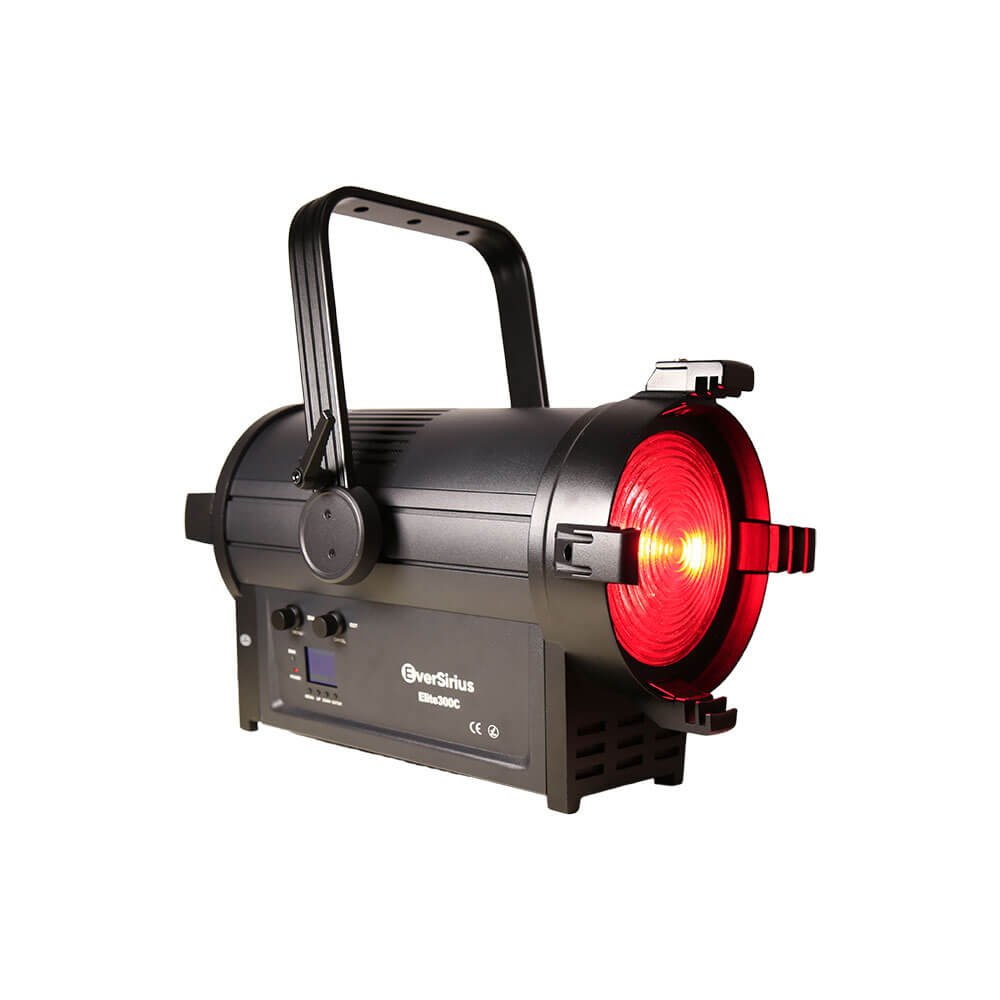

Elite300C: Full Color LED Fresnel
The Elite300C is a 350W full-color LED Fresnel for studio and broadcast use. It uses an RGBWW 5-in-1 COB LED with CRI and TLCI over 95, delivering accurate colors on camera. Color temperature is adjustable from 3000K to 5600K.
The fixture features manual/motorized zoom from 10° to 50°, with pole operation (optional) support for studio grids. It offers smooth 0–100% dimming and flicker-free performance for video production. A quiet cooling system ensures low noise during operation.
Key Features:
- 350W RGBWW full-color LED
- CRI 96+, TLCI 95+
- CCT 3000K–5600K adjustable
- 0–100% flicker-free dimming
- Dimming curve: 4 kinds of dimming curves
- Dimming mode: Frequency optional 1K-22KHz
- 10°–50° manual/motorized zoom
- pole operation optional
- Low-noise cooling
- DMX/RDM control

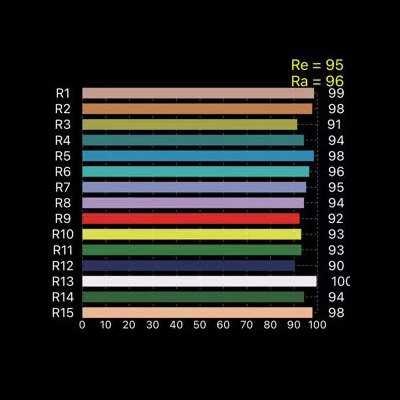

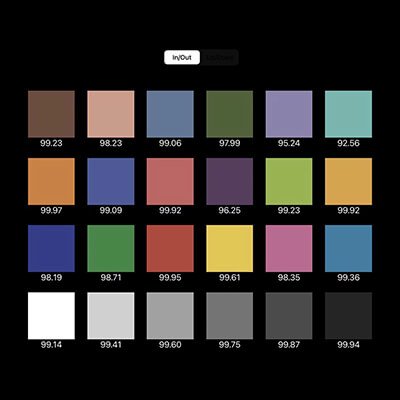

Light Test Data
Photometric data
Spot(15°):
|
|
2m | 3m | 5m | 7m | 9m |
|
3000K |
3275 lx /304 fc | 1459 lx /136 fc | 525 lx /49 fc | 268 lx /25 fc | 162 lx /15 fc |
| 4300K | 4103 lx /381 fc | 1818 lx /169 fc | 647 lx /60 fc | 338 lx /31 fc |
205 lx /19 fc |
| 5600K | 4369 lx /406 fc | 1955 lx /182 fc | 708 lx /66 fc | 357 lx /33 fc |
213 lx /20 fc |
Flood(50°):
|
|
2m | 3m | 5m | 7m | 9m |
|
3000K |
1523 lx /142 fc | 682 lx /63 fc | 239 lx /22 fc | 125 lx /12 fc | 77 lx /7 fc |
| 4300K | 1855 lx /172 fc | 830lx /77 fc | 300 lx /28 fc | 157 lx /15 fc |
94 lx /9 fc |
| 5600K | 1998 lx /186 fc | 884 lx /82 fc | 316 lx /29 fc | 165 lx /15 fc |
98 lx /9 fc |
Standard accessories:
- Barn doors
- Power cable
- DMX 5pin cable
