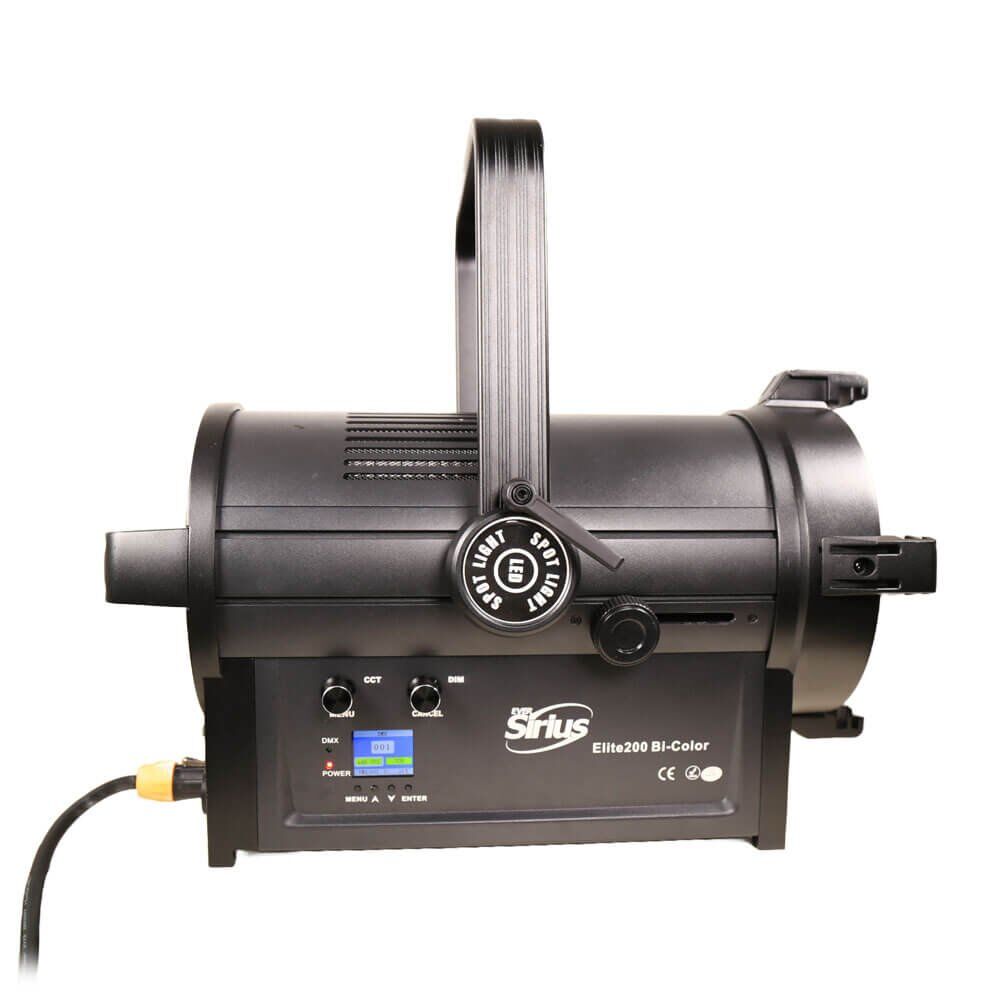

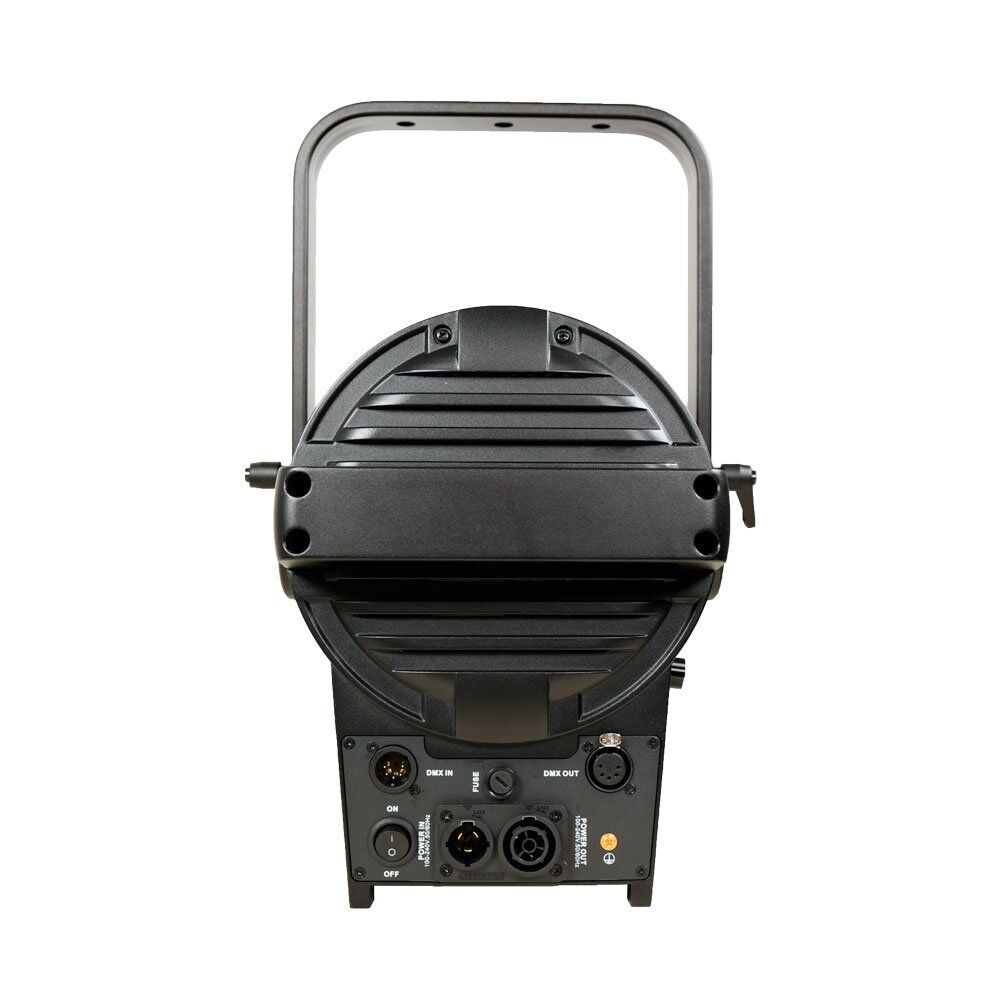

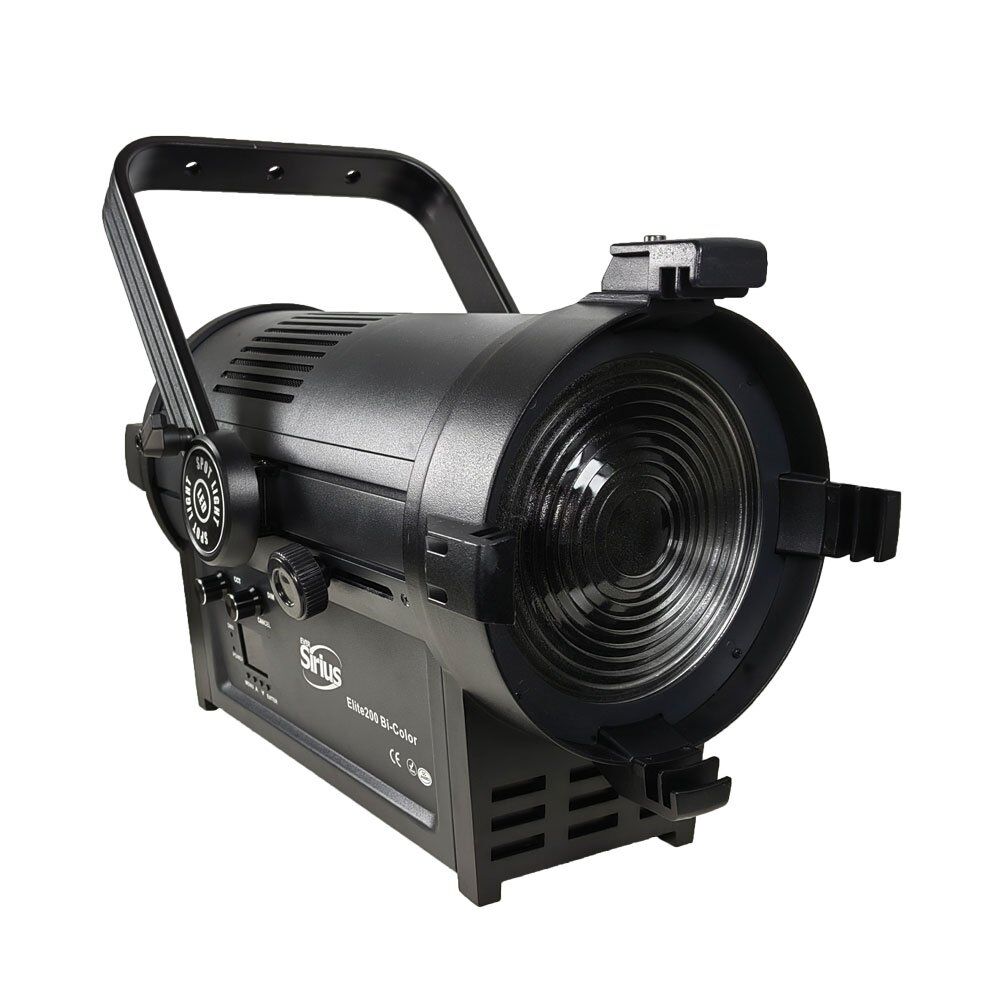

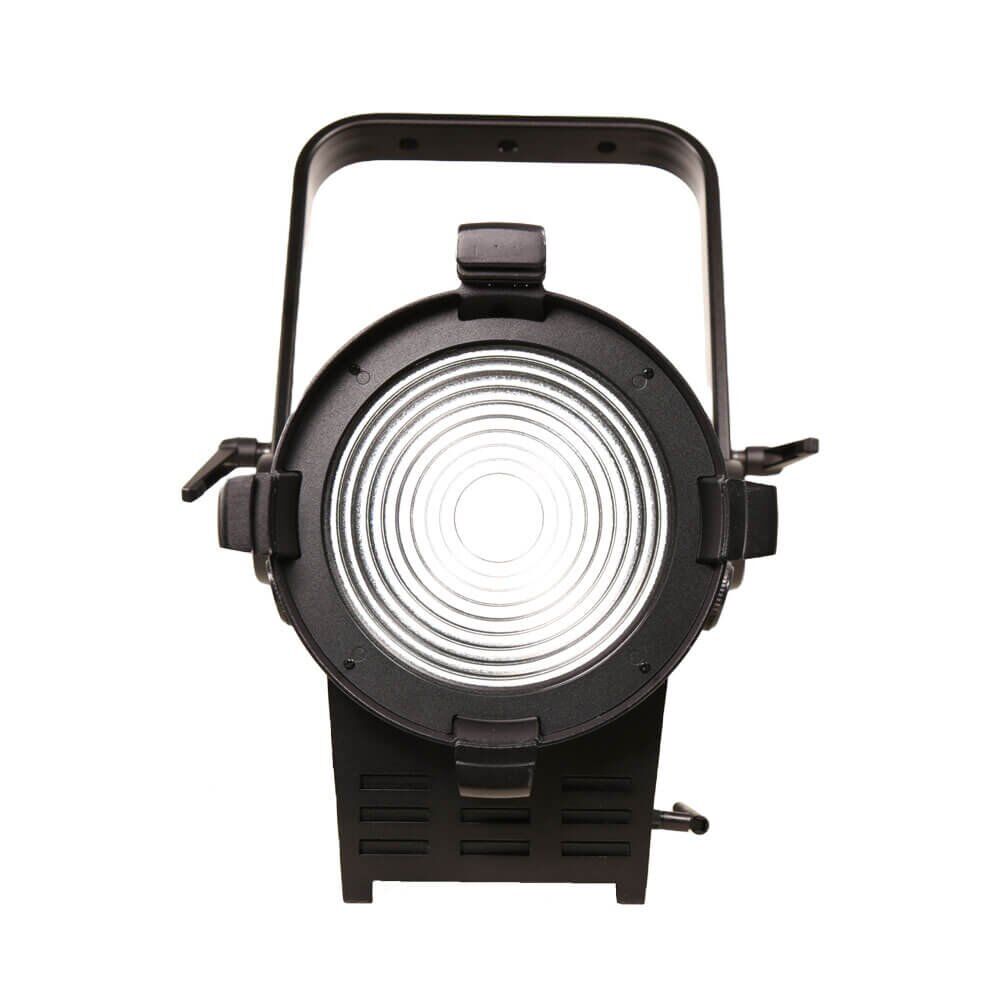

Bi-Color LED Fresnel 200W Fan-less Elite200
| Model | Elite200 |
|---|---|
| Power | 200W |
| CRI | 97+ |
| TLCI | 97+ |
| CCT | Bi-Color 2700K ~ 6500K |
| Beam angle | 15° – 55° |
| Dimming | 0-100% linear dimming |
| DMX512 | Integrated LumenRadio CRMX TimoTwo, XLR 5pins |
| Cooling System | Fan-less design |
| Working Voltage | AC100-240V, 50-60Hz |
| Working temperature | -10℃ ~ +40℃ |
| Dimension | 481*324*444mm |
| Weight | 10.2kg |
Product Details
Main Features:
- Fanless design for studios;
- Bi-Color 2700-6500K;
- With integrated LumenRadio CRMX TimoTwo,
- Zoom 15°-55°;
- 10273 lux @3m at 15°; 3630 lux @3m at 55°;
- CRI>95, TLCI>95;
- DMX512 5pins;
- Power in/out: PowerCon True1.
Light Test Data
Photometric data
Spot(15°):
|
|
2m | 3m | 5m | 7m | 9m |
|
2700K |
19344 lx /1798 fc | 8040 lx /747 fc | 3004 lx /279 fc | 1606 lx /149 fc | 970 lx /90 fc |
|
3200K |
18708 lx /1739 fc | 7993 lx /743 fc | 2972 lx /276 fc | 1590 lx /148 fc | 956 lx /89 fc |
| 4400K | 21065 lx /1958 fc | 8968 lx /833 fc | 3325 lx /309 fc | 1787 lx /166 fc |
1080 lx /100 fc |
| 5600K | 22686 lx /2108 fc | 9582 lx /891 fc | 3562 lx /331 fc | 1913 lx /178 fc |
1163 lx /108 fc |
| 6500K | 24316 lx /2260 fc | 10273 lx /955 fc | 3798 lx /353 fc | 2042 lx /190 fc |
1262 lx /117 fc |
Flood(55°):
|
|
2m | 3m | 5m | 7m | 9m |
|
2700K |
6926 lx /643 fc | 2862 lx /266 fc | 1276 lx /119 fc | 728 lx /68 fc | 472 lx /44 fc |
|
3200K |
6761 lx /628 fc | 2823 lx /262 fc | 1259 lx /117 fc | 722 lx /67 fc | 466 lx /43 fc |
| 4400K | 7583 lx /705 fc | 3203 lx /298 fc | 1399 lx /130 fc | 813 lx /76 fc |
526 lx /49 fc |
| 5600K | 8161 lx /758 fc | 3405 lx /316 fc | 1499 lx /139 fc | 874 lx /81 fc |
567 lx /53 fc |
| 6500K | 8742 lx /812 fc | 3630 lx /337 fc | 1597 lx /148 fc | 933 lx /87 fc |
606 lx /56 fc |
Standard accessories:

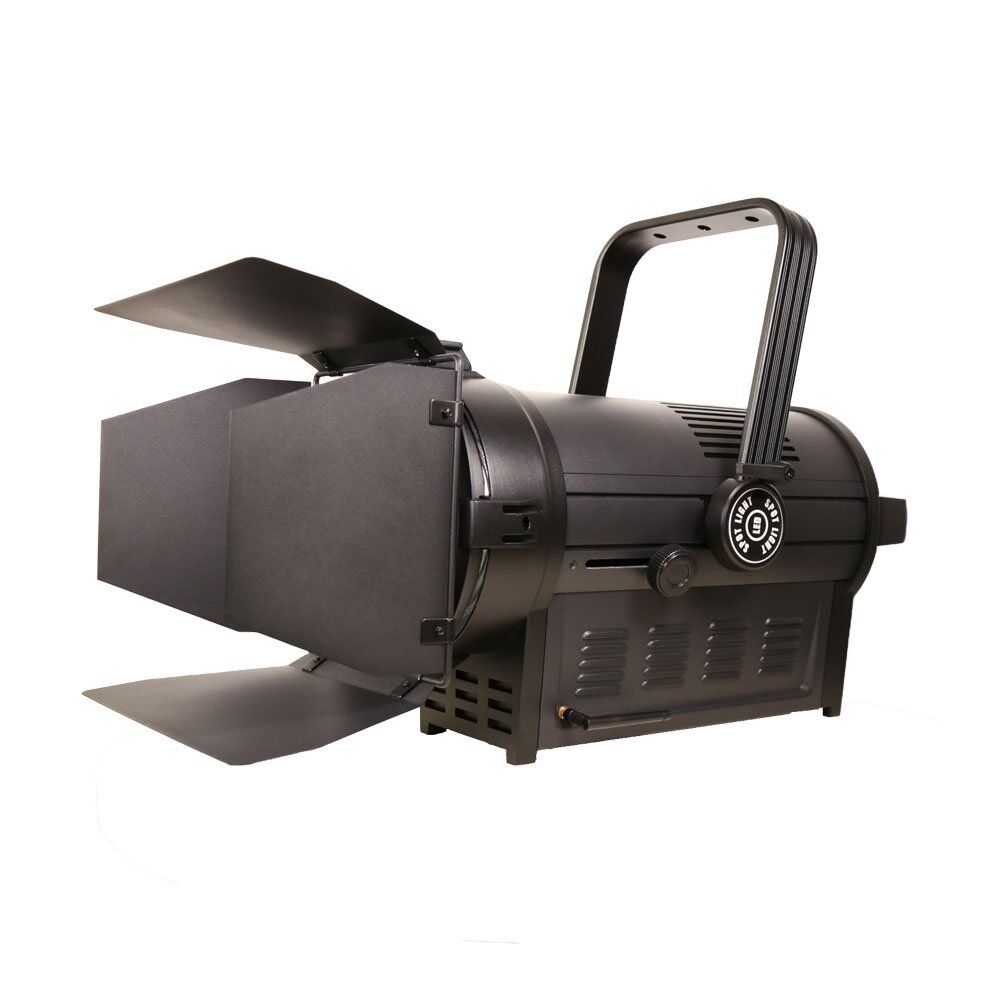

- Barn doors
- Power cable
- DMX cable
