Bi-Color LED Panel Mini 80W Fan-less EX80

EX80 is the winner of NRK(Norwegian national broadcaster)’ RFQ in 2019, due to its compact size, high light output, exact color, high-grade quality and DMX512 control.

Model

EX80

Power

80W

CCT

Bi-Color 2700K ~ 6500K

CRI

95+

TLCI

95+

LED Source

DIP (soft)

Beam angle

60°

Battery Mount

Gold Mount, V Mount

DMX512

XLR 5pins

Dimension

419*438*77mm (with yoke)

Weight

3.14kg (with barndoor)

Highlights

Compact size, high light output, high-grade quality and DMX512 control.

Product Details

Specifications
  • High CRI 95-98, TLCI >95
  • 0-100% step-less dimming, Bi-color 2700K-6500K;

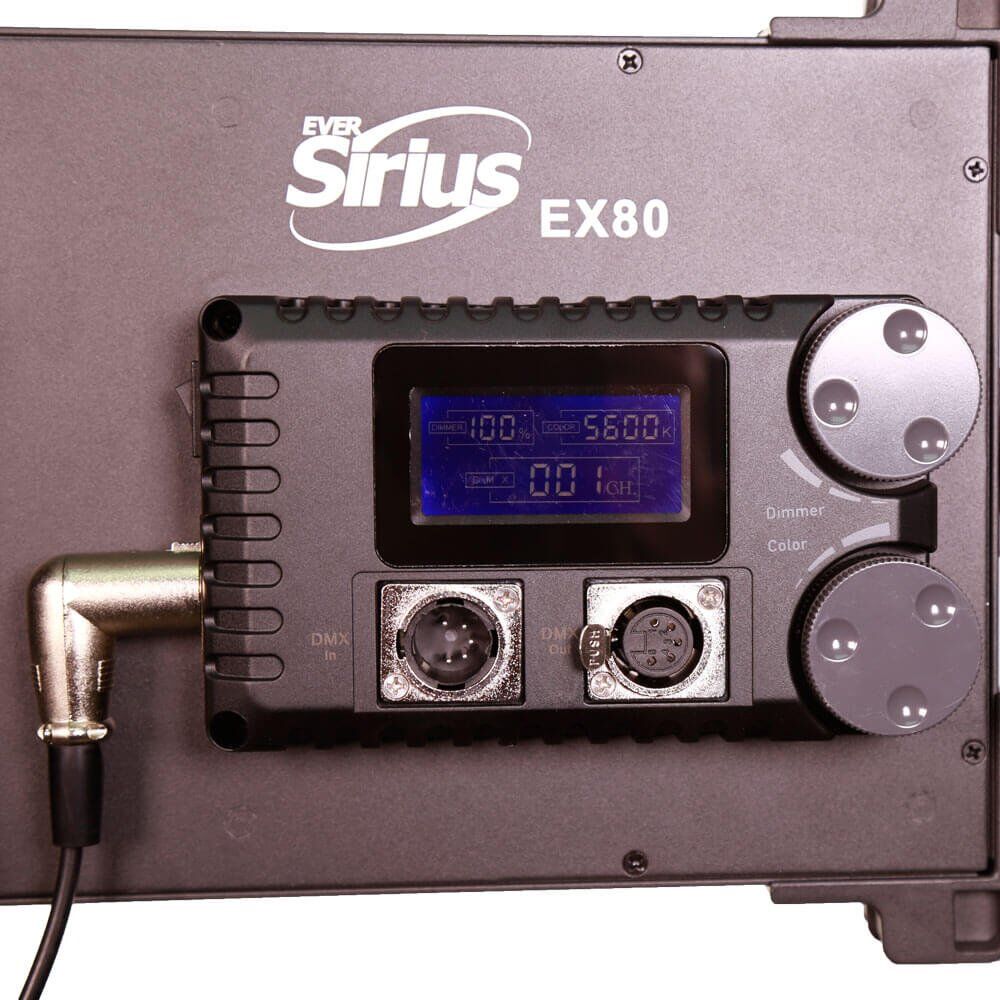

  • LCD displays brightness, color temperature, and DMX address in real-time
  • Beam angle 60°
  • Brightness: 3128lux@1m, 891lux@2m
  • Aluminum alloy frame, good heat dissipation
  • Power option: AC adaptor, 14.8V battery, 2pcs of compatible battery DS-F960 via converting plate.
  • Battery plate: V-mount battery plate (Anton Bauer Gold Mount plate optional)
  • Dimension: 419 x 438 x 77 mm including yoke; panel size: 359 x 234 x 77 mm
  • Weight: 2.57kg (without barndoor), 3.14kg (with barndoor)
  • Certification: CE EMC and LVD certified, RoHs reports





Light Test Data









Photometric data
1 meter / 3.28 feet 2 meters / 6.56 feet 3 meters / 9.84 feet

2700K

2778 lx / 258 fc 737 lx / 68 fc

419 lx / 39 fc

3200K

2768 lx / 257 fc 758 lx / 70 fc

426 lx / 40 fc

4400K

2926 lx / 272 fc 793 lx / 74 fc

448 lx / 41 fc

5600K

3106 lx / 289 fc 806 lx / 75 fc

452 lx / 42 fc

6500K 3128 lx / 291 fc 891 lx / 83 fc

455 lx / 42 fc

Data updated in May 2023



What are included

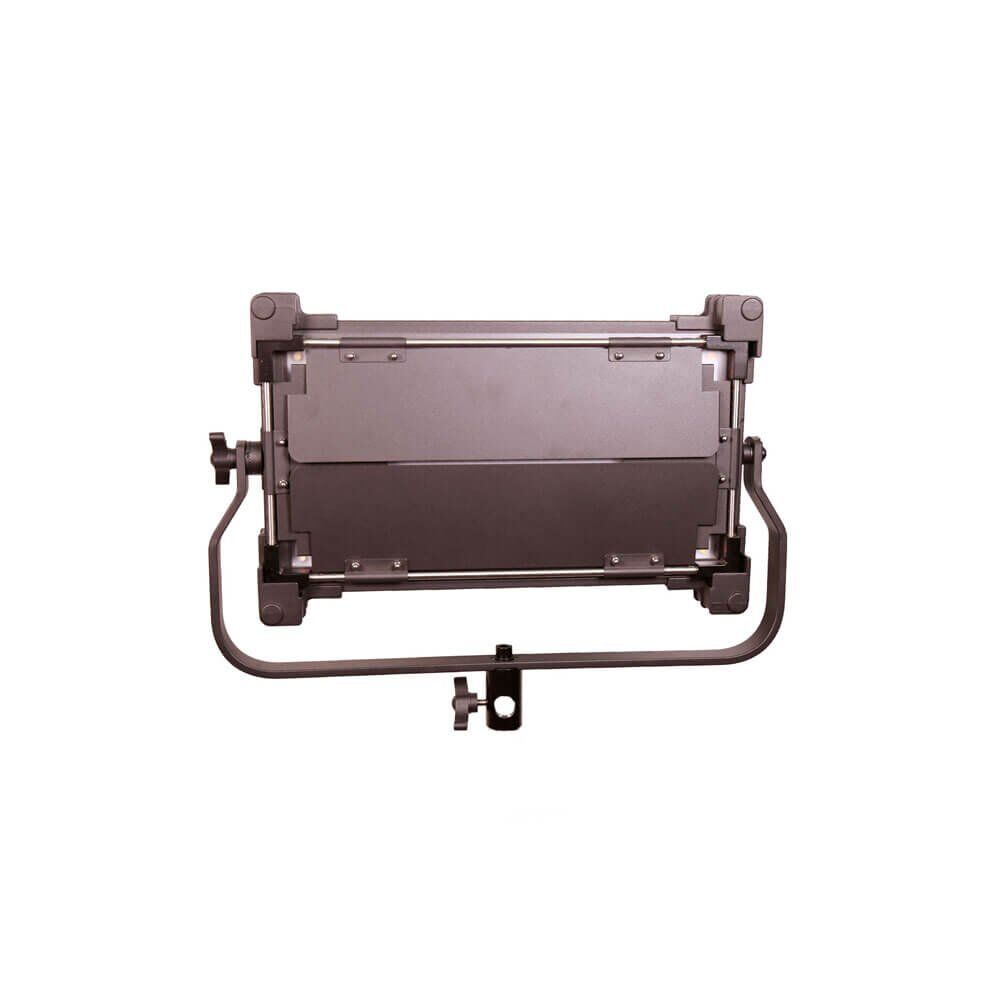

  • barndoors and yoke
  • AC adapter with V-lock
  • Power cable of 4 meters
  • DMX XLR 5pins cable of 5 meters
  • Full diffusion filter
  • Safety cable
  • Manual



Optional accessories
  • honeycomb
  • light stand
  • DMX controller
  • portable bag
