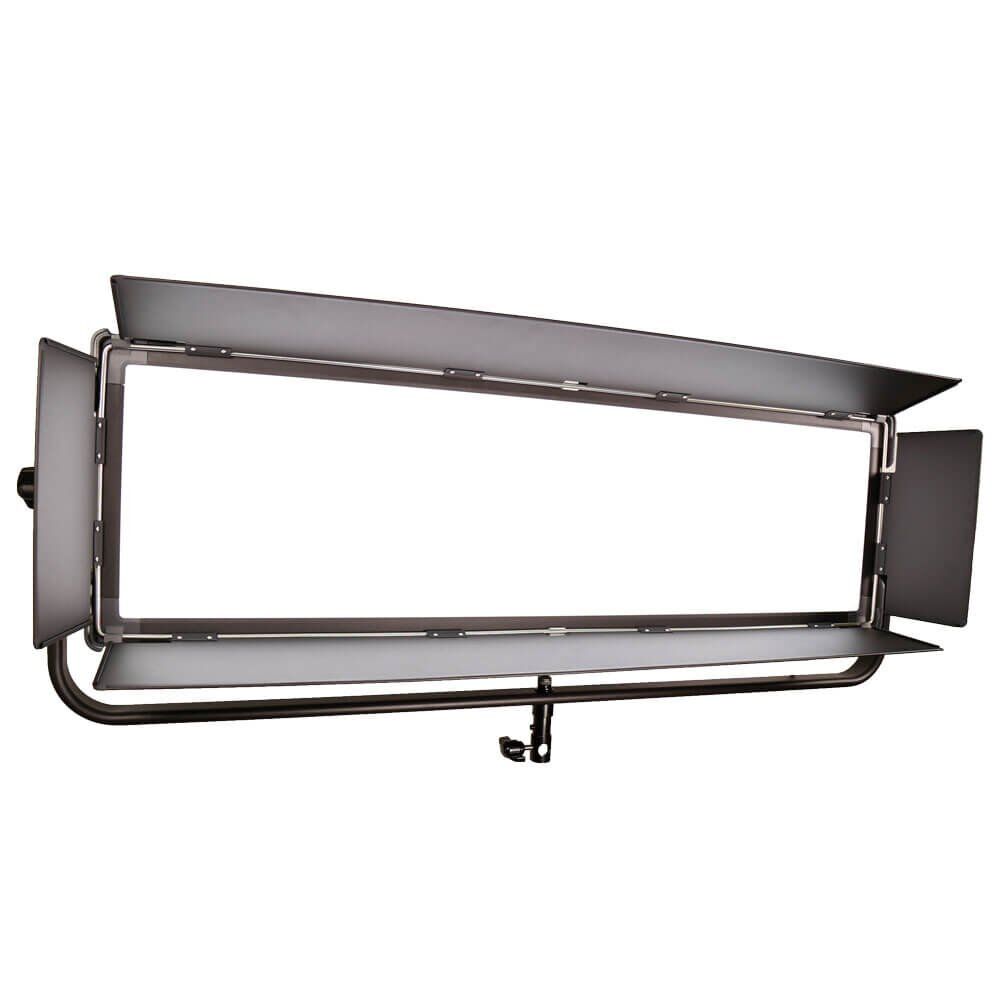

Bi-Color LED Panel 200W Fan-less EX200

Model

EX200

Power

200W

CRI

96+

TLCI

96+

CCT

Bi-Color 2800K~6500K

Beam angle

120°

Dimming

0-100% step-less dimming, flicker-free

CRMX

Optional built-in Lumenradio TimoTwo module

DMX512

XLR 5pins

LED Source

2400 pcs SMD (soft)

Working Voltage

AC100-240V / DC25.6-33.6V

Dimension

1056×335×133mm

Weight

10.5 kg

Version

EX200 with Lumenradio TimoTwo module, EX200 with USB 5V 2A

Product Details

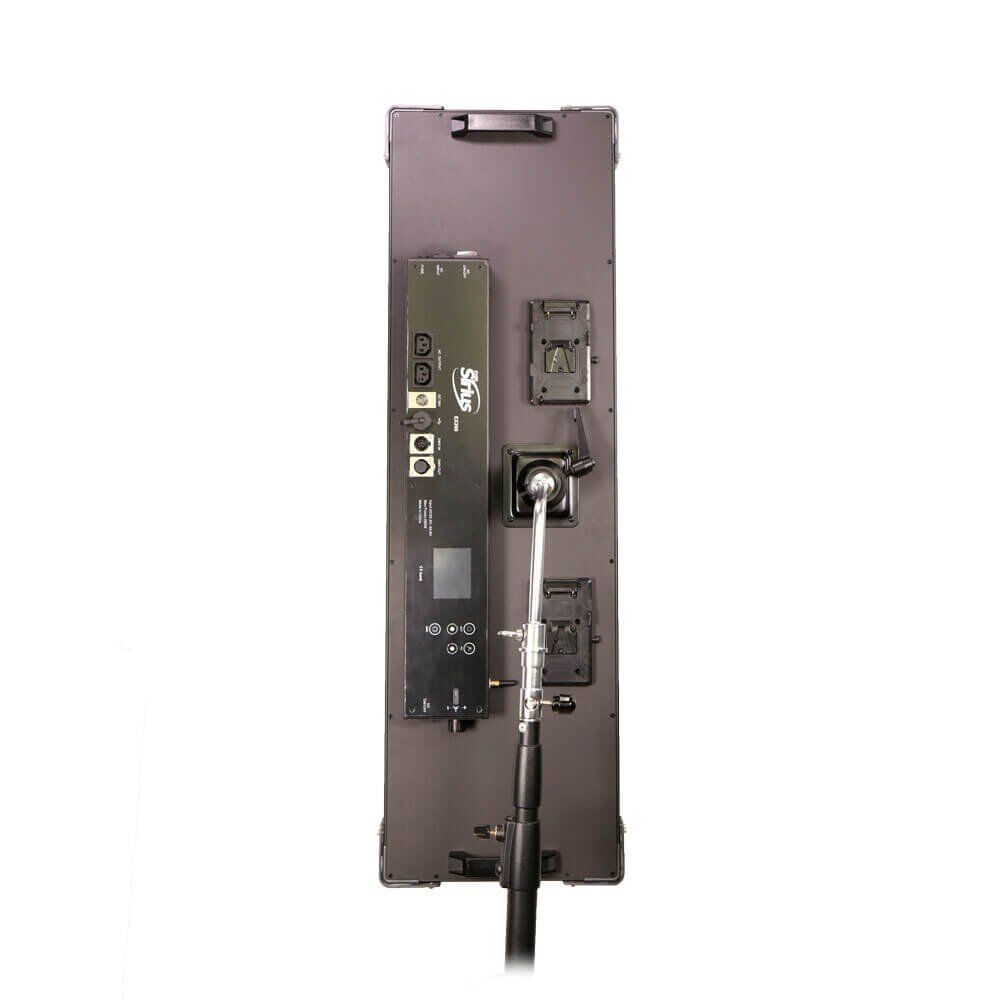

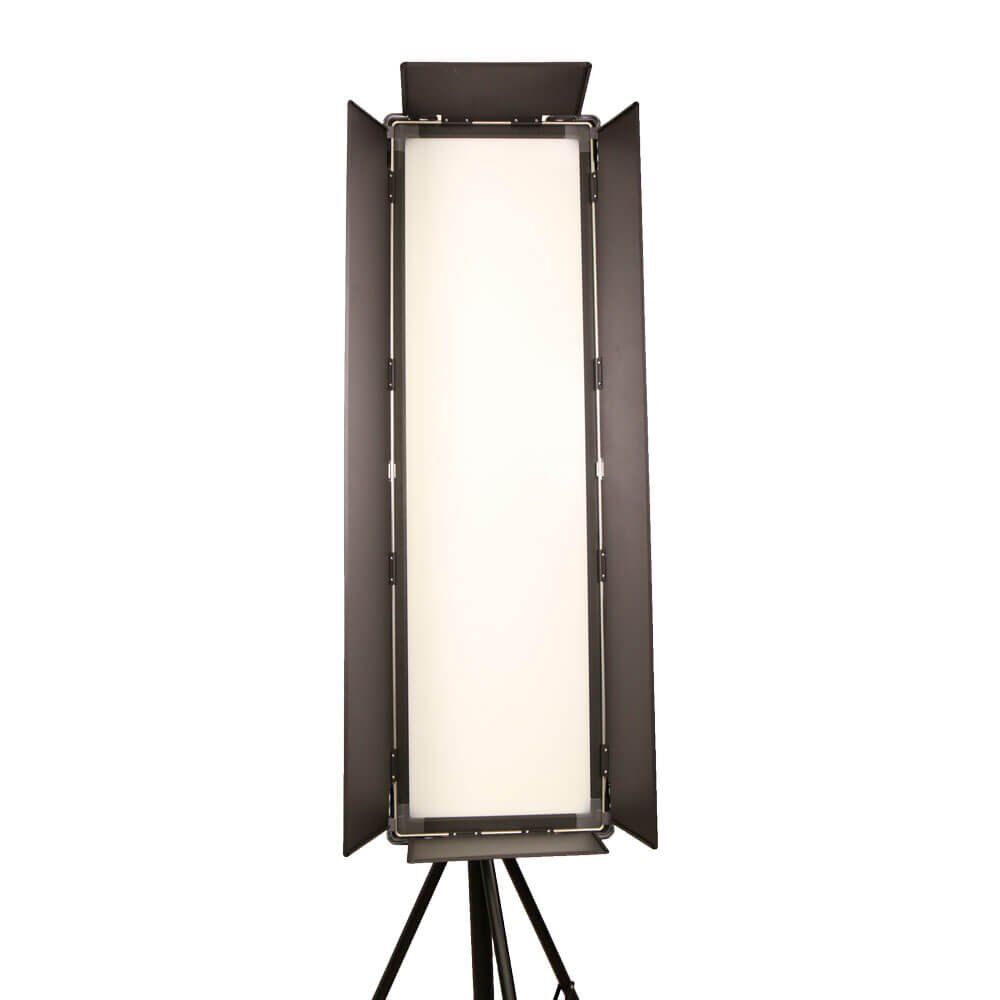

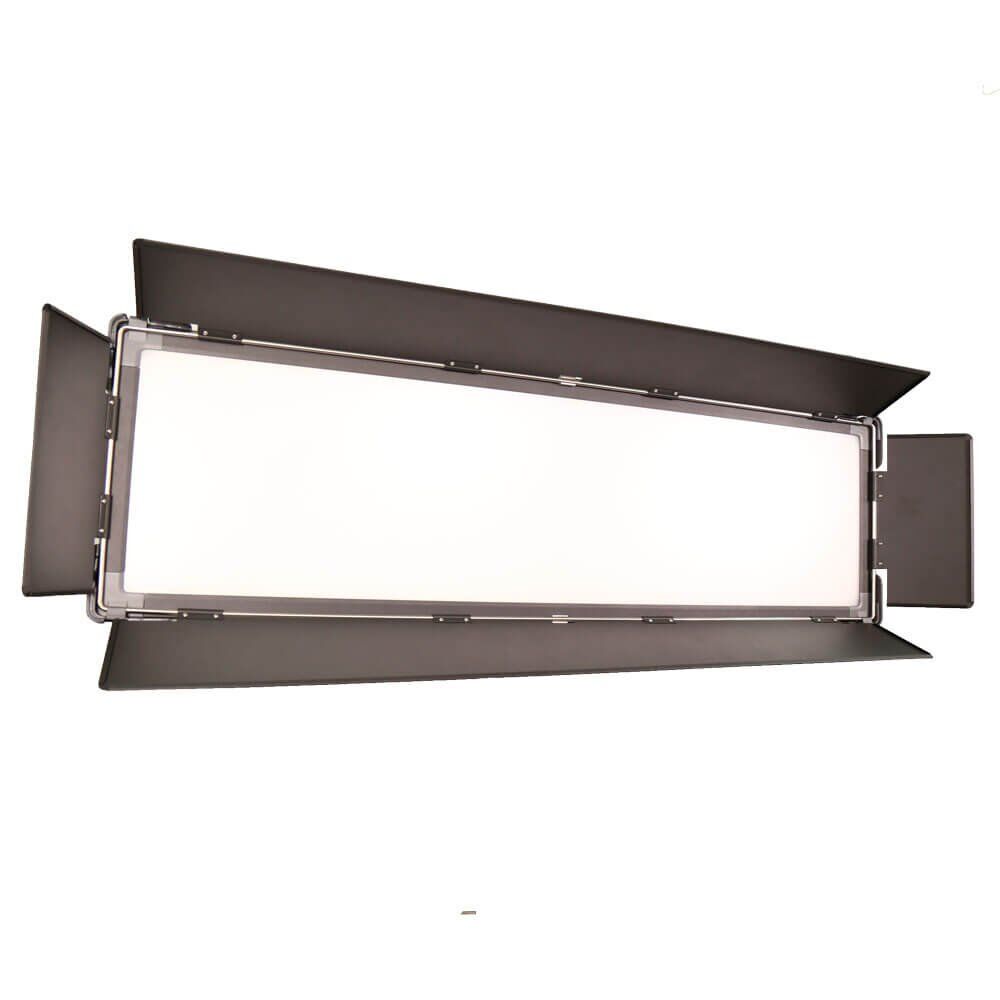

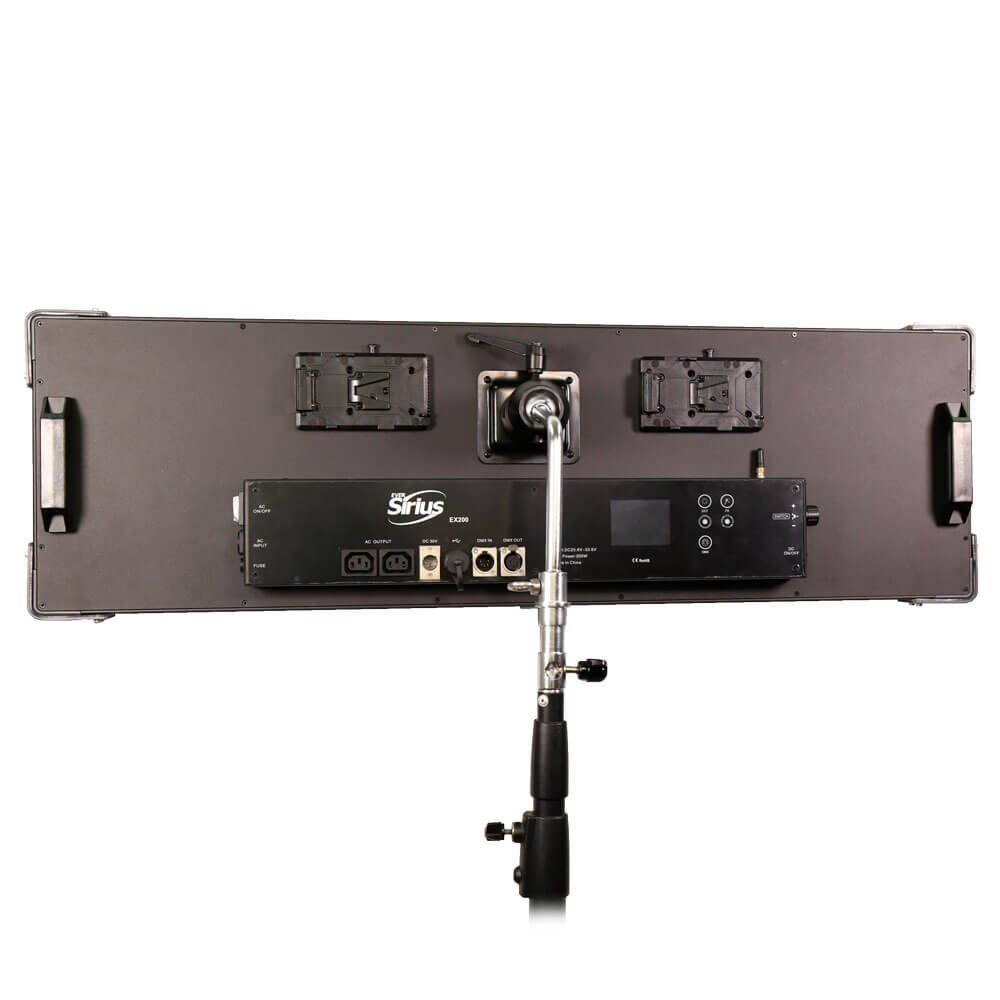

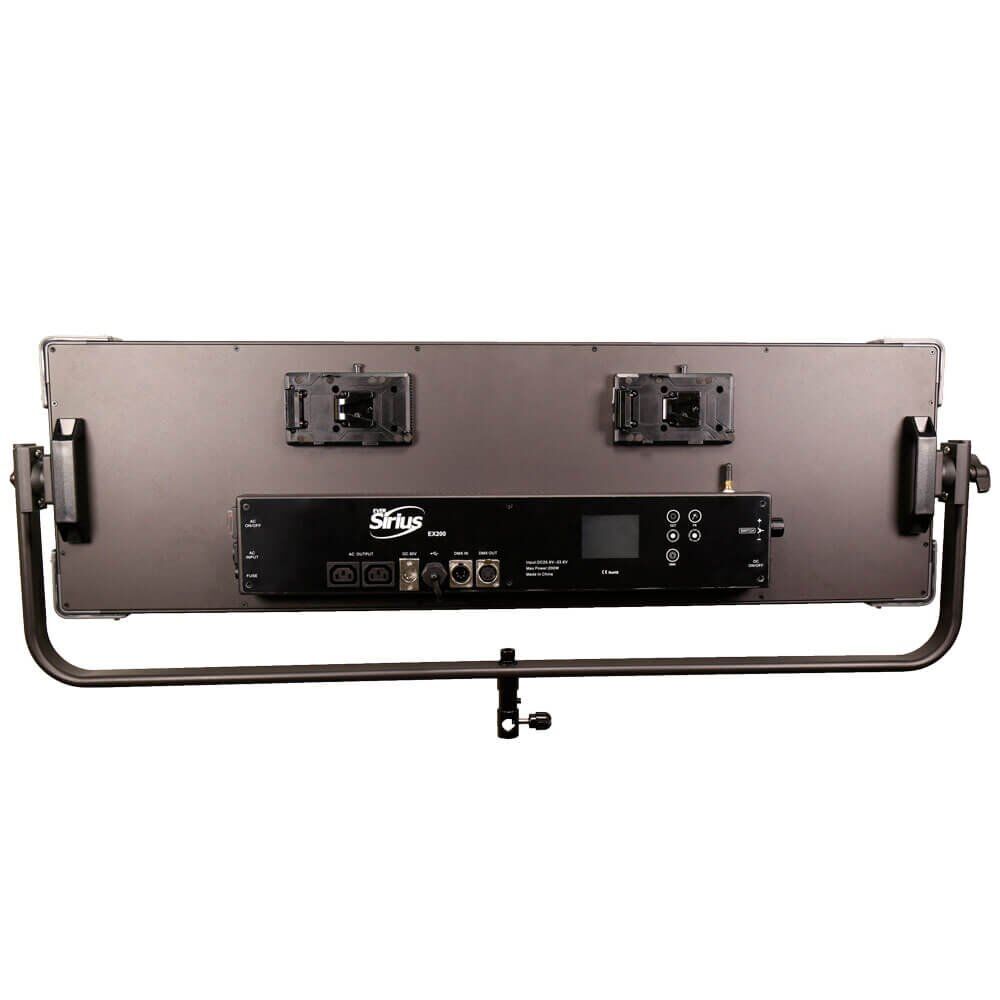

Soft LED Panel EX200



Powerful soft LED panel EX200 is designed for big studios. The beam angle is flood 120°, but it can reach the brightness of 4500lux @1m. The wide CCT 2800K~6500K give more color choice. AC in and outputs to make more lights in parallel, for easier wiring. The fan-less design gives a silent shooting environment. Moreover, both CCT and brightness can be quick preset. The 11 lighting effects makes it competitive and available for more application.

Features
  • Big LCD Display to show precise real-time data
  • Touch Key for CCT quick setting 3200K / 4500K / 5600K / 6500K
  • Touch Key for brightness quick setting 25% / 50% / 75% / 100%
  • 11 special light effects
  • AC/DC dual power supply modes

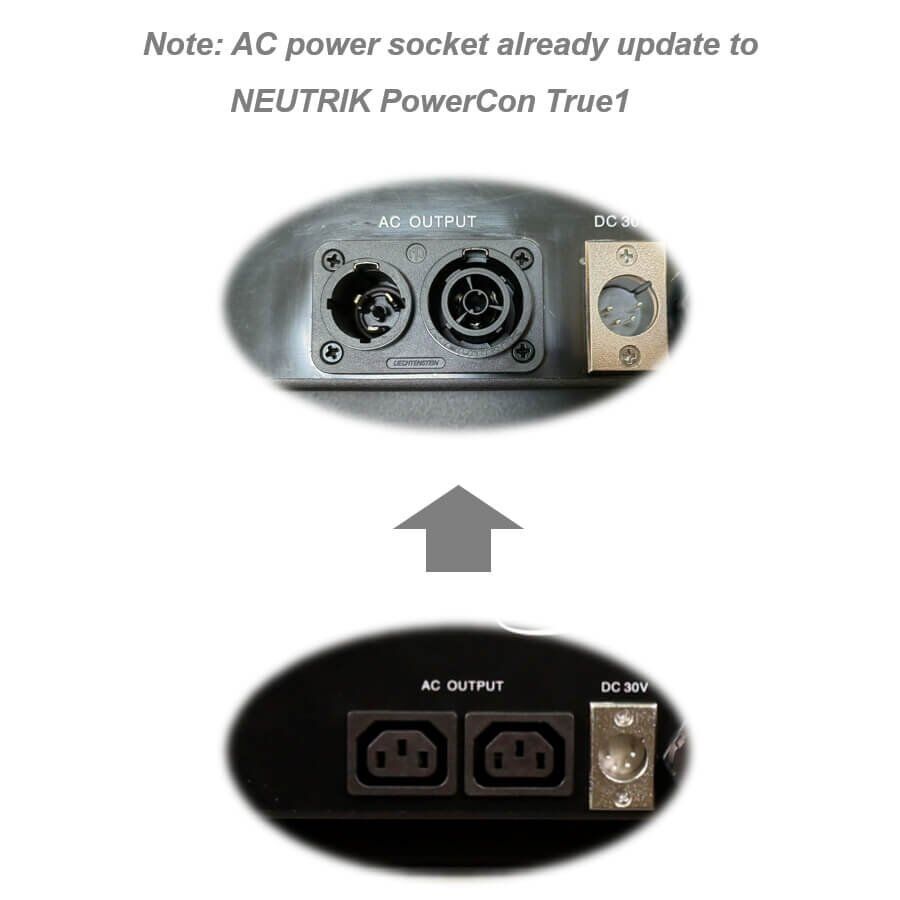

  • Built-in AC adapter, AC outputs to make more lights in parallel
  • Fan-less design, passive cooling system without noise
  • All-aluminum frame, better heat dissipation
  • Safe and compact all-metal support of stand adapter
  • Optional built-in Lumenradio TimoTwo module
Light test data





Photometric data
1 meter / 3.28 feet 2 meter / 6.56 feet 3 meter / 9.84 feet

2800K

4207 lx / 391 fc 1376 lx / 128 fc 752 lx / 70 fc

3200K

5069 lx / 471 fc 1669 lx / 155 fc 899 lx / 84 fc

4500K

5367 lx / 499 fc 1733 lx / 161 fc

947 lx / 88 fc

5600K

5485 lx / 514 fc 1775 lx / 165 fc

955 lx / 89 fc

6500K 4867 lx / 452 fc 1582 lx / 147 fc

861 lx / 80 fc

Data updated in February 2023



What are included
  1. LED Panel EX200
  2. DMX cable
  3. Power cable
  4. Barn doors
  5. Safety cable
Optional accessories
  • Optional built-in Lumenradio TimoTwo module
  • Soft Box and Egg Crate
  • Honeycomb grid
  • Soft bag
  • Flight case
  • Battery and charger
