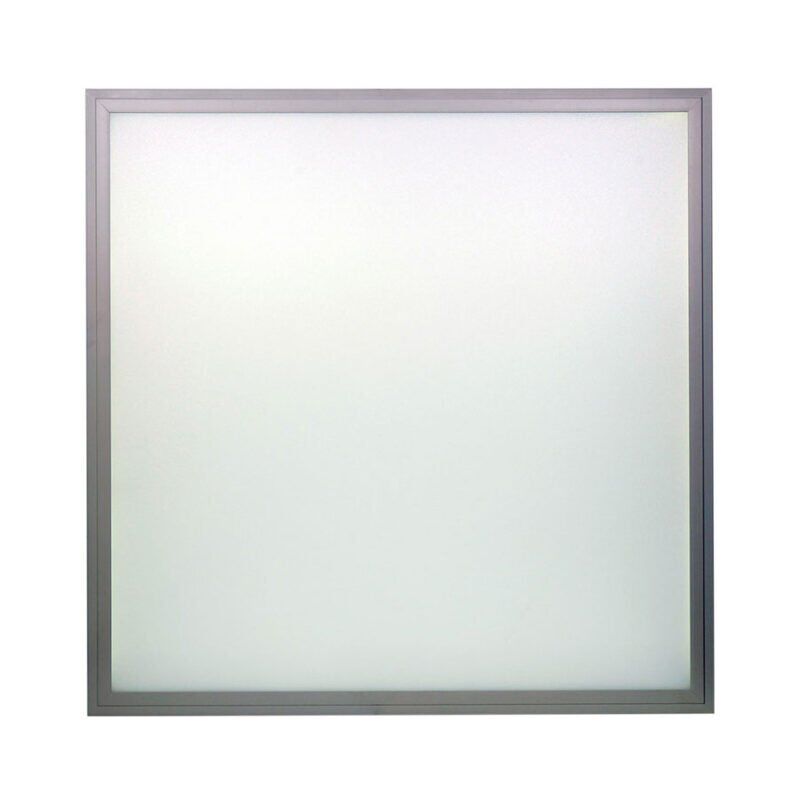

BeamPro: Bi-Color LED Ceiling panel 45W EC60

Model

ECM1000 DMX512 Control, ECM1000 Remote Control

Power Drain

45W

LED Source

SMD (soft)

CCT

Bi-Color 3000K – 6000K

CRI

95+

TLCI

95+

Beam angle

120 degree

Dimming

0 – 100%

DMX control

Channel 1: Dimming control;
Channel 2: CCT control

USB output

5V 2A, Having the panel work with the CRMX system by an external CRMX receiver

AC output

2 outputs

Working Voltage

AC 100-240V, 50-60Hz

Dimension

595mm x 595mm x 10mm or customized

Weight

Panel: 2.6 kg; Controller: 1.2 kg

Clear
Product Details

Professional light for low-ceiling TV studios.

Better light for video conference rooms and recording studios/classrooms.

A new lighting solution for studios:

Get better basic light: shadowless, uniform, bi-color, easy installation & control.

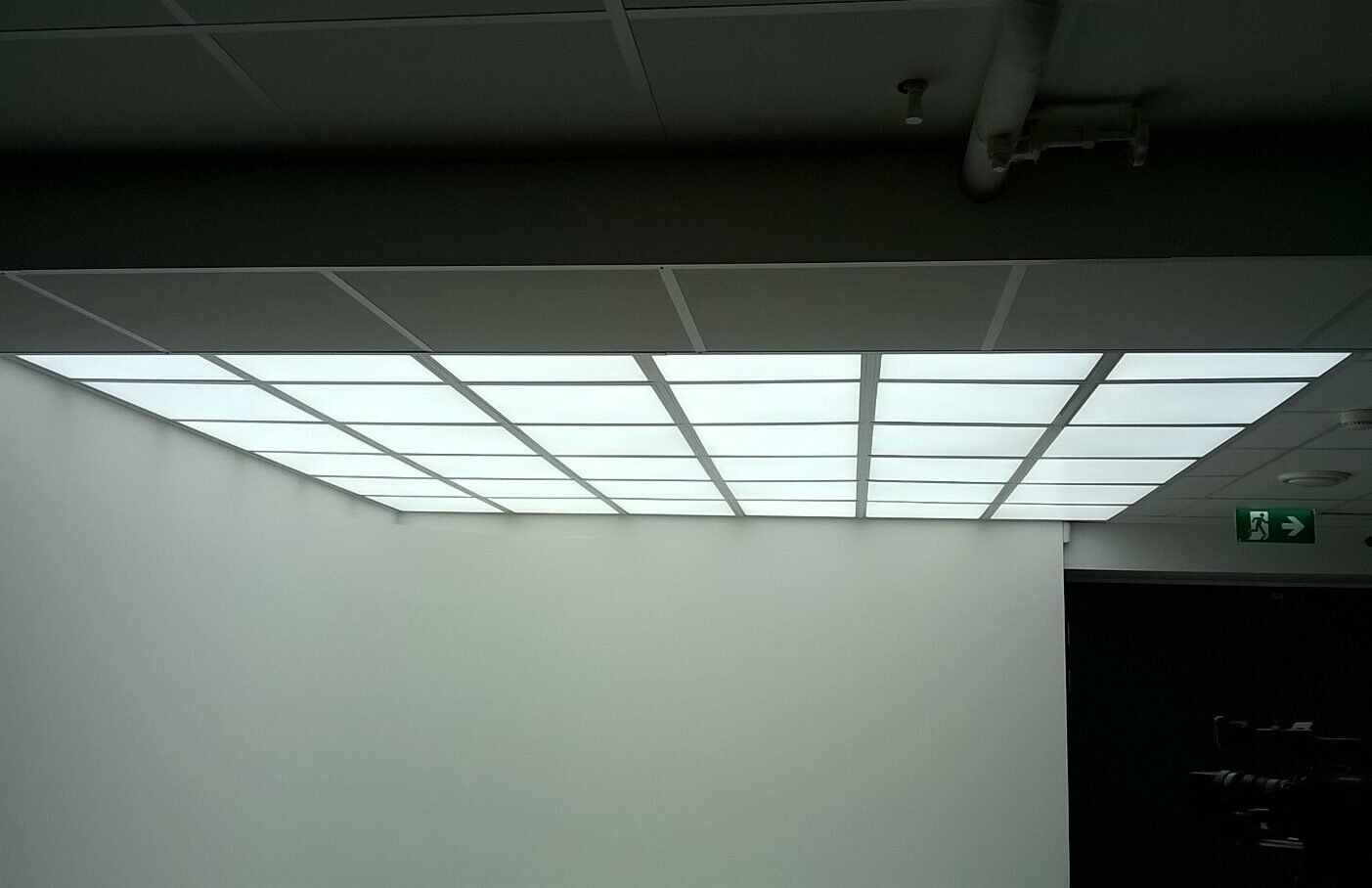

Twenty Studio ECM1000 Scene

TWENTY STUDIOS in Sweden uses 40 panels to get 3000K – 6000K, 160,000 lumens. CRI Ra >95.

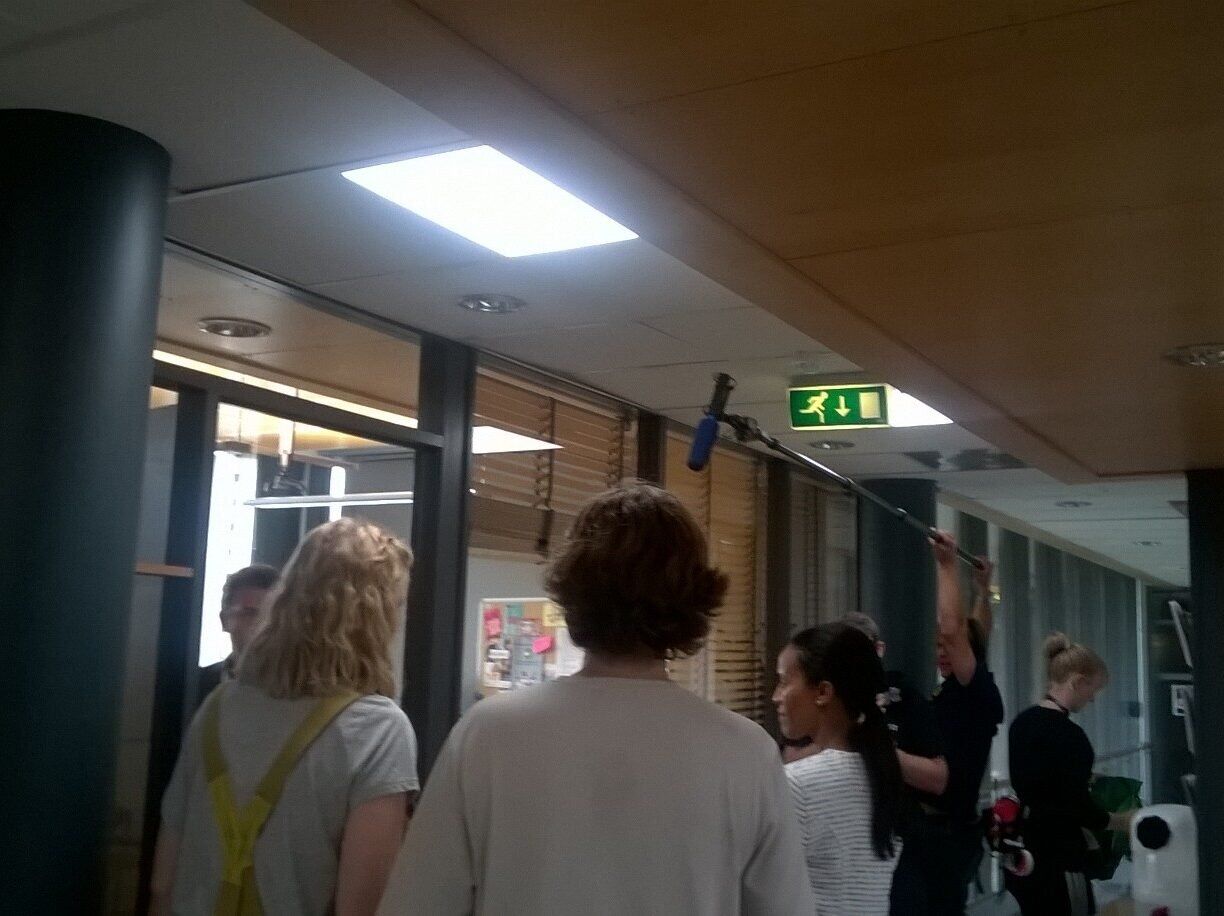

NRK use the ceiling panel in their OB

NRK mounted 18 ceiling panels in their OB, and easily got uniform bi-color basic light for outside broadcasting.



EverSirius ceiling panel BeamPro is originally designed for recording studios, in which the ceiling is usually low, with not enough space for professional lighting fixtures. Then clients use BeamPro in many application scenarios with ceiling boards but require professional lighting, such as low-ceiling TV studios, video conference rooms and lecture recording studios/classrooms, etc.

BeamPro is designed as professional lighting, different from other ceiling panels. It comes with the LED source CRI 95+ and TLCI 95+. Moreover, both brightness 0-100% and color temperature 3000K-6000K can be controlled by wired DMX or CRMX system by an external CRMX receiver. The two AC outputs on each controller have the panels powered by each other in parallel. When the panels matrix is installed, you can get completely shadowless, bi-color basic light.



Some advantages: 1. Get good light that does not dazzle and gives no shadows; 2. These panels only take a few cm of the ceiling height; 3. Installation is easy as pie!

Main Features:

  • CRI Ra >95, TLCI >95
  • CCT 3000K – 6000K Bi-color
  • Beam angle: 120°
  • Dimming: 0~100%
  • DMX / Remote control available
  • Working temperature: -20°C ~ +45°C
  • IP44 CLASSⅡ, Temperature rise <20°, Long lifespan: ≥50,000h
  • Side emitting, super-slim 10mm
  • Weight: 3.3kg

Light Test Data:











Illuminance

CCT

3000K 6000K

1m

910lux 85fc 1000lux

93fc

2m 323lux 30fc 356lux

33fc

CE Certificate & RoHS report:





What are included:

  • LED panel
  • Controller
  • power cable
  • DMX cable

Here is the simplest way:

Use our LED panels to replace the boards of the drop ceilings.





BeamPro has upgraded to 100W! Find more here: https://eversirius.com/product/100w-ceiling-panel-for-studio/
