Bi-Color LED Panel 120W Fan-less EX120

Soft LED Panel EX 120



Powerful soft LED panel EX120 is popular for broadcast studios because of its excellent appearance and performance. The wide CCT 2800K~6500K give more color choice. It is flicker-free. Both CRI and TLCI are 96+. The fan-less design makes it perfect for TV studios. Moreover, both CCT and brightness can be quick preset. The 11 lighting effects makes it competitive and available for more application.

Features:

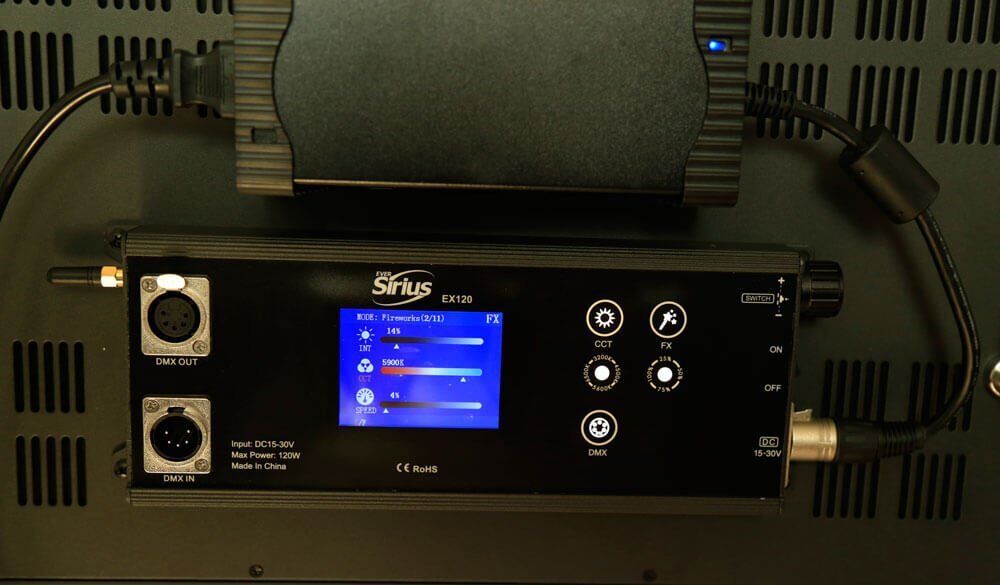

• Big LCD Display to show precise real-time data
• Touch Key for CCT quick setting 3200K / 4500K / 5600K / 6500K
• Touch Key for brightness quick setting 25% / 50% / 75% / 100%
• 11 special light effects
• AC/DC dual power supply modes
• Fan-less design, passive cooling system without noise
• Aluminum alloy frame, better heat dissipation
• Optional built-in Lumenradio TimoTwo module

Light test data







Photometric data

	1 meter / 3.28 feet	2 meter / 6.56 feet	3 meter / 9.84 feet
2800K	3001 lx / 279 fc	850 lx / 79 fc	448 lx / 42 fc
3200K	3309 lx / 308 fc	939 lx / 87 fc	492 lx / 46 fc
4500K	3588 lx / 333 fc	1010 lx / 94 fc	529 lx / 49 fc
5600K	3729 lx / 347 fc	1049 lx / 97 fc	549 lx / 51 fc
6500K	3830 lx / 356 fc	1063 lx / 99 fc	557 lx / 52 fc

Data updated in February 2023

What are included

1. LED Panel EX120
2. DMX cable
3. AC adapter
4. Power cable
5. Barn doors
6. Safety cable

Optional accessories

• Optional built-in Lumenradio TimoTwo module
• Soft Box and Egg Crate
• Honeycomb grid
• Soft bag
• Flight case
• Battery and charger
