Bi-Color LED Fresnel 350W Elite300
| Model | Elite300 |
|---|---|
| Power | 350W |
| CRI | 96+ |
| TLCI | 96+ |
| CCT | Bi-Color 2700K ~ 6500K |
| Beam angle | 15° – 55° |
| Dimming | 0-100% linear dimming |
| DMX512 | XLR 5pins |
| Working Voltage | AC100-240V, 50-60Hz |
| Working temperature | -10℃ ~ +40℃ |
| Dimension | 481*324*444mm |
| Weight | 9kg |
| Heat dissipation system | silent fan |
Product Details

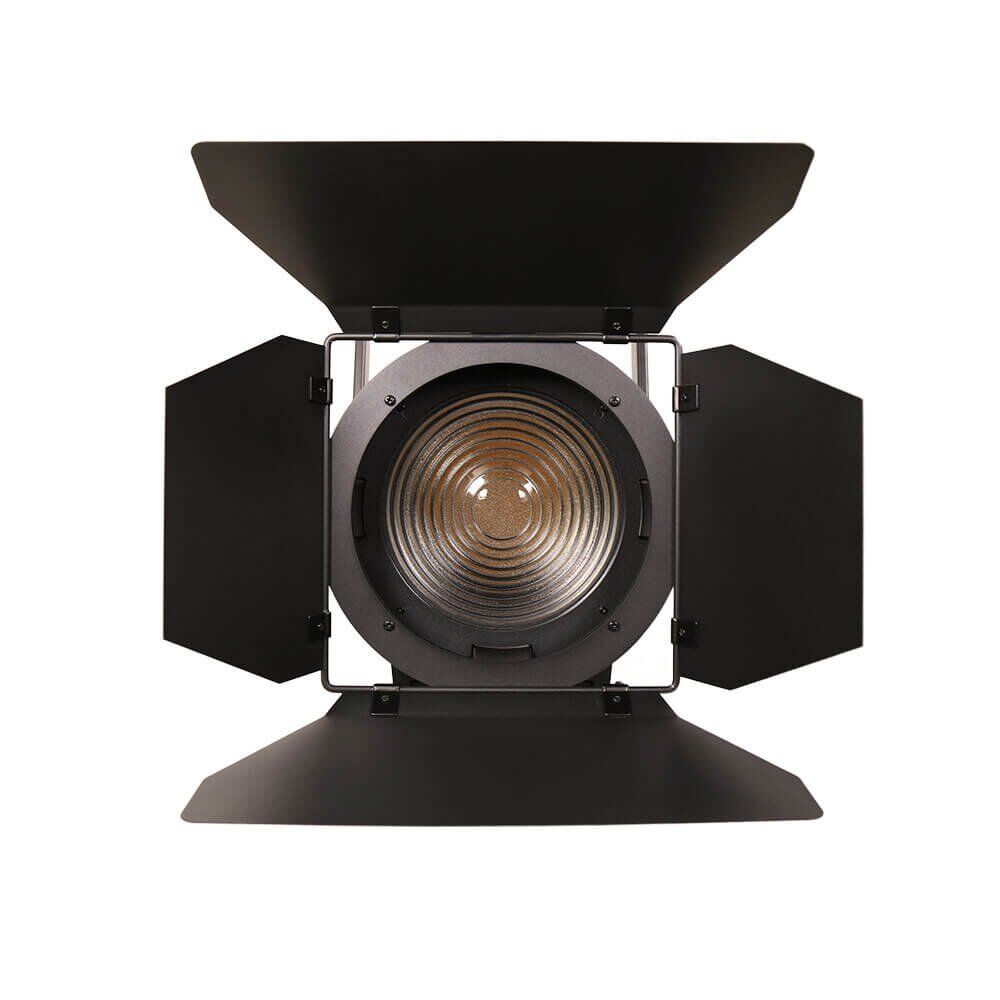

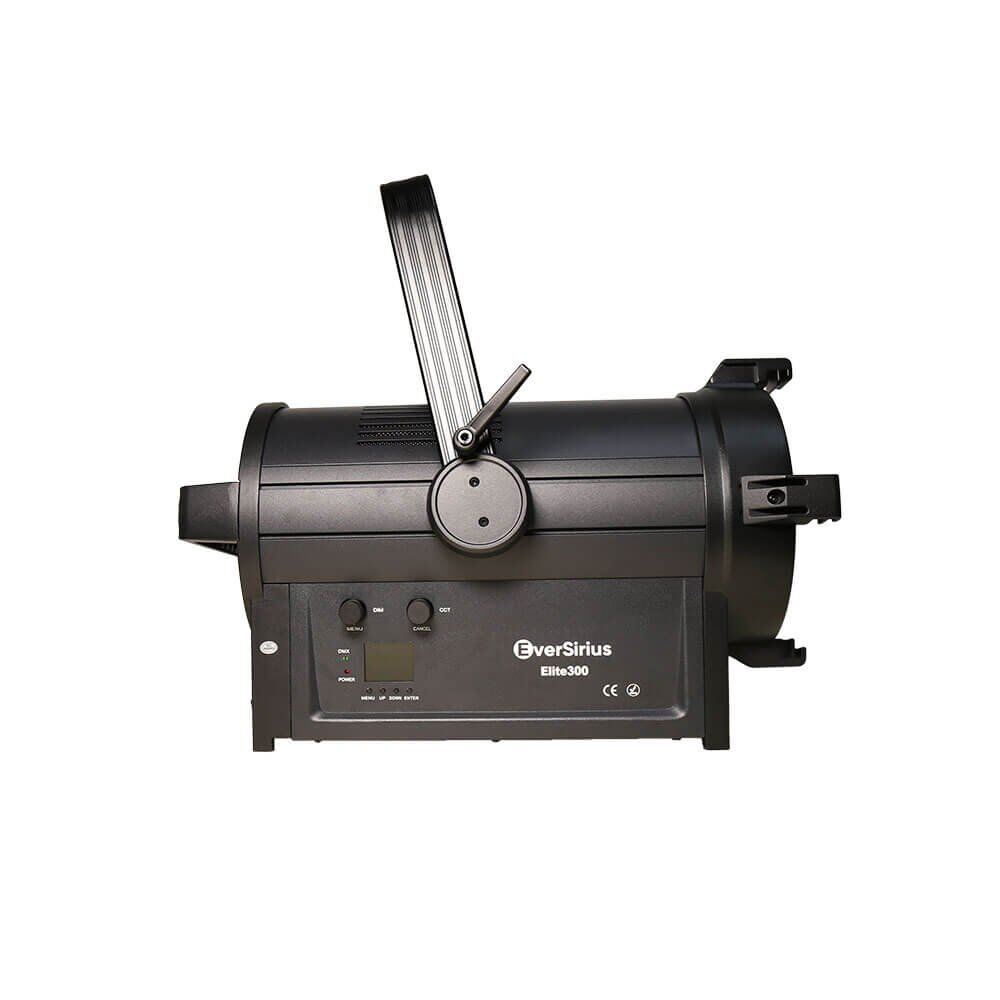

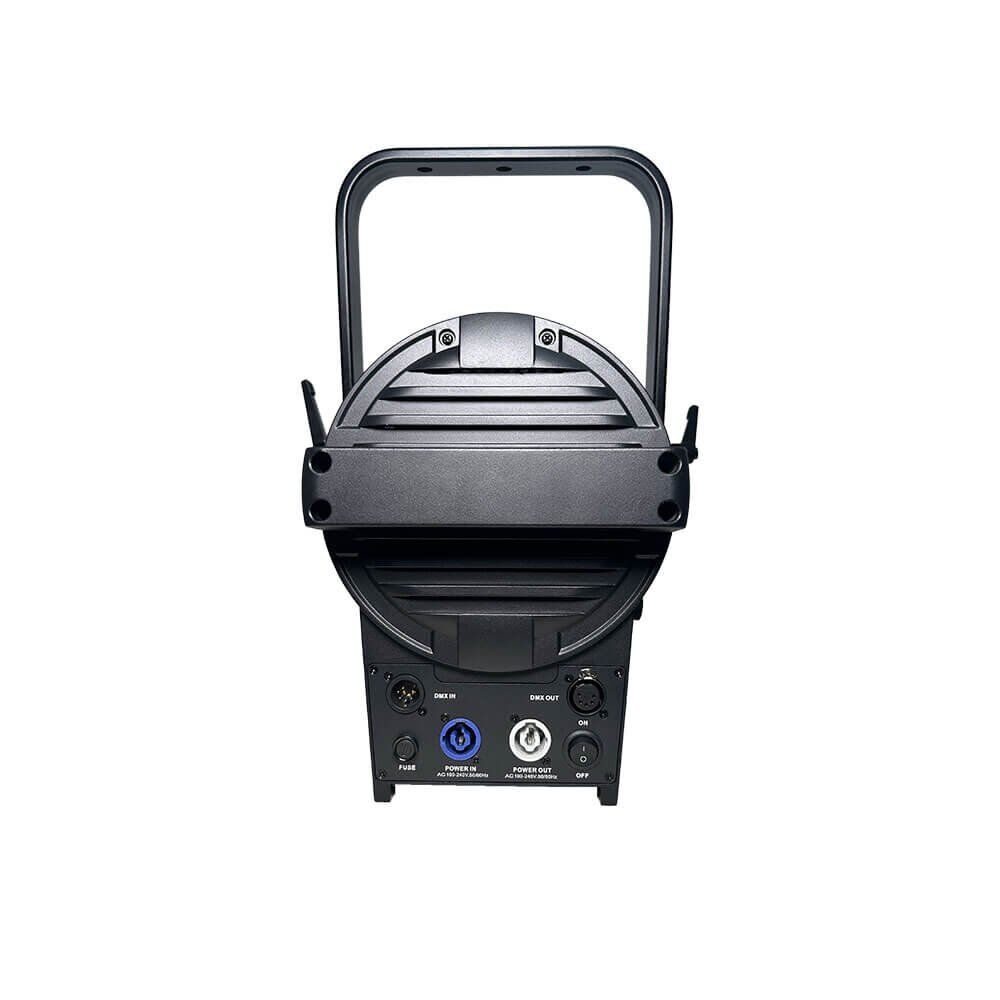

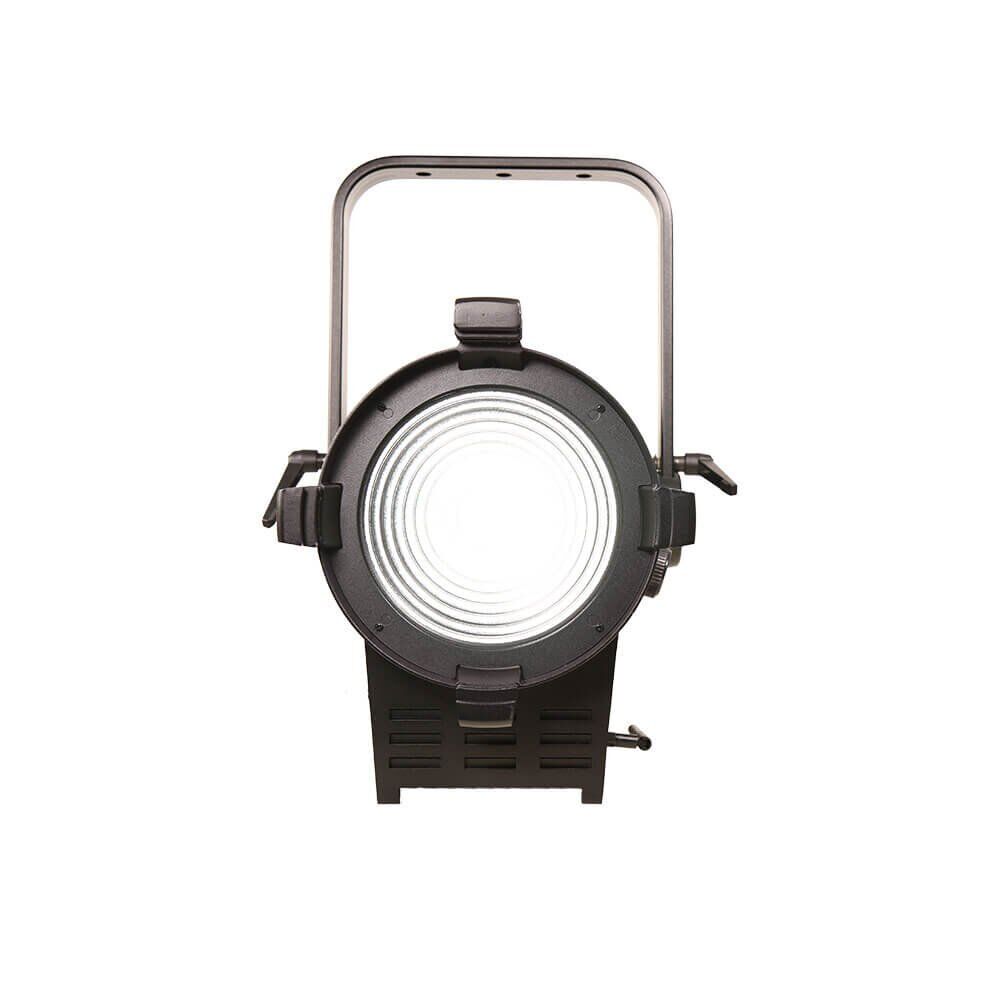

Elite300 Bi-Color LED Fresnel
The Elite300 is a 350W bi-color LED Fresnel designed for studio and broadcast lighting. It uses a 2-in-1 COB LED with high output, delivering about twice the brightness of the Elite200. CRI and TLCI are 96+, ensuring accurate color for camera work.
Color temperature is adjustable from 2700K to 6500K. The motorized zoom ranges from 15° to 55°, with pole operation supported for grid mounting. Smooth 0–100% flicker-free dimming is available with adjustable dimming curves and high refresh rates for video.
A quiet cooling system keeps noise low in studio environments. The fixture supports DMX512 and RDM control.
Key Features:
- 350W bi-color COB LED
- CRI 96+, TLCI 96+
- Bi-Color 2700K–6500K adjustable CCT
- 15°–55° motorized zoom, pole operable
- 0–100% flicker-free dimming
- Low-noise cooling
- DMX/RDM control
Light Test Data
Photometric data
Spot(15°):
|
|
2m | 3m | 5m | 7m | 9m |
|
2800K |
32710 lx /3040 fc | 14536 lx /1351 fc | 5232 lx /486 fc | 2673 lx /248 fc | 1615 lx /150 fc |
| 4000K | 38637 lx /3591 fc | 17169 lx /1596 fc | 6183 lx /575 fc | 3154 lx /293 fc |
1909 lx /177 fc |
| 5600K | 46802 lx /4350 fc | 20805 lx /1934 fc | 7489 lx /696 fc | 3821 lx /355 fc |
2316 lx /215 fc |
Flood(55°):
|
|
2m | 3m | 5m | 7m | 9m |
|
2800K |
8348 lx /776 fc | 3707 lx /345 fc | 1339 lx /124 fc | 680 lx /63 fc | 413 lx /38 fc |
| 4000K | 10413 lx /968 fc | 4628 lx /430 fc | 1666 lx /155 fc | 855 lx /79 fc |
512 lx /48 fc |
| 5600K | 11204 lx /1041 fc | 4983 lx /463 fc | 1795 lx /167 fc | 912 lx /85 fc |
554 lx /51 fc |
Standard accessories:
- Barn doors
- Power cable
- DMX 5pin cable
