BeamFlex: Full Color/Bi-Color Foldable LED Mat 200W Fan-less (2×2) EL200C

Model

EL200C

Power

200W

CCT

2700K-10000K

Dimming

0-100%

CRI

96+

TLCI

98+

Beam angle

120°

DMX512

XLR 5pins

CRMX

LumenRadio TimoTwo available

Cooling method

Fanless design, passive heat dissipation

Dimension

Panel: 600*600*25 mm
controlller:217*144*68 mm

Weight

Panel: 3kg
Controller: 1.3kg

Option

RGBWW, Bi-Color

Clear
Product Details

BeamFlex: Professional Flexible LED Panel for Versatile Setups



Enhance your production quality with BeamFlex, our thoughtfully engineered foldable LED panel designed to cater to the practical needs of TV studios, video conferencing, and live streaming. Its user-friendly design and high-performance features make it a reliable tool for various professional lighting setups.

Introducing the BeamFlex: Your Studio’s Silent Workhorse

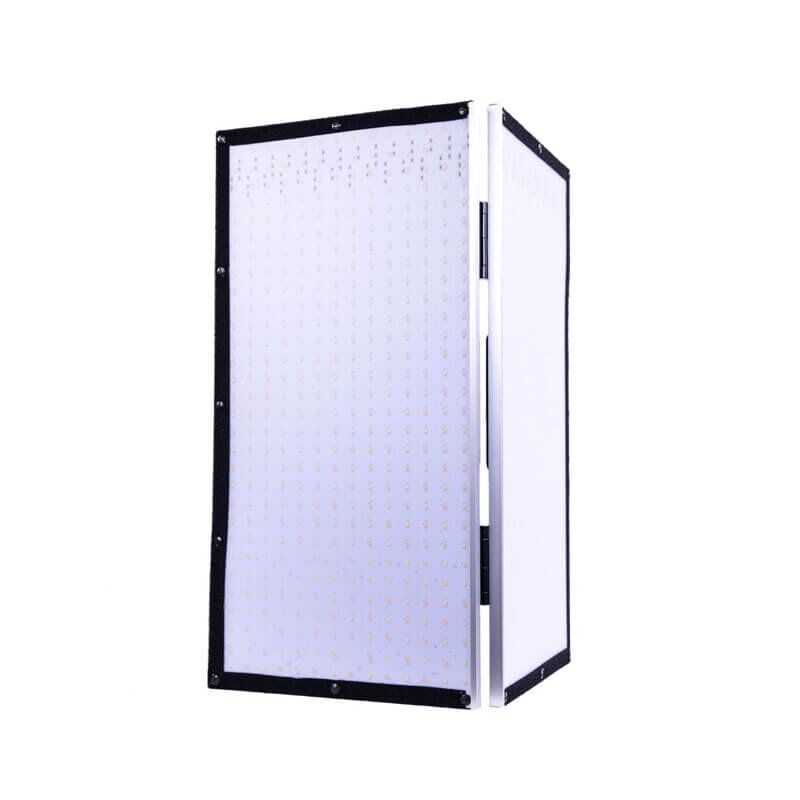

  • Foldable Flexibility: The BeamFlex offers a foldable, lightweight structure for easy transport and storage. It fits seamlessly into any on-location or studio space at a slender 2.5cm thickness and weighing only 3kg.
  • Fanless Design, Silent Operation: With an all-metal backplate, which is a passive cooling system, BeamFlex operates without fans, ensuring your recordings are free of unwanted noise interference.
  • Precision Lighting: CRI≥96, TLCI ≥98, step-less dimming 0-100%. CCT 2700K – 10000K to match any lighting condition.
  • Efficient Control: While in CCT mode, the RGB LEDs stay unlit, ensuring pure white light control. For creative scenarios, 19 preset lighting effects add drama or realism to your scenes.
  • Adaptable for Any Space: BeamFlex’s detachable controller and compact form factor are designed to facilitate quick adjustments and fit into varied filming environments, regardless of size constraints.



Specifications:
  • Model: BeamFlex EL200C
  • LED Source: RGB + Daylight + Tungsten SMD LED source
  • Power Consumption: 200W
  • CCT: 2700K~10000K, with G/M adjustment
  • Dimming: 0~100% stepless dimming, 4 dimming curves including Linear, Exponential, Logarithmic, and S-Curve.
  • Light effects (×19): Pulsing, fire, TV, lightning, faulty bulb, paparazzi, SOS, fireworks, explosion, breathing, twinkle, club, cop car, candle, party, fluorescent, weld, color chase, CCT chase
  • CRI: ≥96
  • TLCI: ≥98
  • Rf: 94 avg.
  • Rg: 103 avg.
  • DMX control: XLR 5pins, CRMX LumenRadio TimoTwo available
  • Cooling system: All-metal back plate for passive heat dissipation
  • Working voltage: AC100-240V, 50/60Hz



Photometric data (600*600mm version):


1m

2m 3m 4m

5m

2700K (w/o softbox)

6412 lux / 596fc

1901 lux / 177fc 887 lux / 82fc 469 lux / 44fc

364 lux / 34fc

2700K (w/ softbox)

5043 lux / 469fc

1296 lux / 120fc 525 lux / 49fc 338 lux / 31fc

252 lux / 23fc

3200K (w/o softbox)

6711 lux / 624fc

1863 lux / 173fc 898 lux / 83fc 502 lux / 47fc

375 lux / 35fc

3200K (w/ softbox)

5100 lux / 474fc

1412 lux / 131fc 586 lux / 54fc 371 lux / 34fc

271 lux / 25fc

5600K (w/o softbox)

7428 lux / 690fc

2113 lux / 196fc 985 lux / 92fc 583 lux / 54fc

399 lux / 37fc

5600K (w/ softbox)

5888 lux / 547fc

1614 lux / 150fc 713 lux / 66fc 400 lux / 37fc

262 lux / 24fc

6500K (w/o softbox)

7606 lux / 707fc

2169 lux / 202fc 1022 lux / 95fc 606 lux / 56fc

410 lux / 38fc

6500K (w/ softbox)

6313 lux / 587fc

1599 lux / 149fc 726 lux / 67fc 417 lux / 39fc

295 lux / 27fc



What’s included:
  • Panel
  • Controller
  • Support rod  (2)
  • Dual spindle
  • Extended connecting cable
  • Power Cable

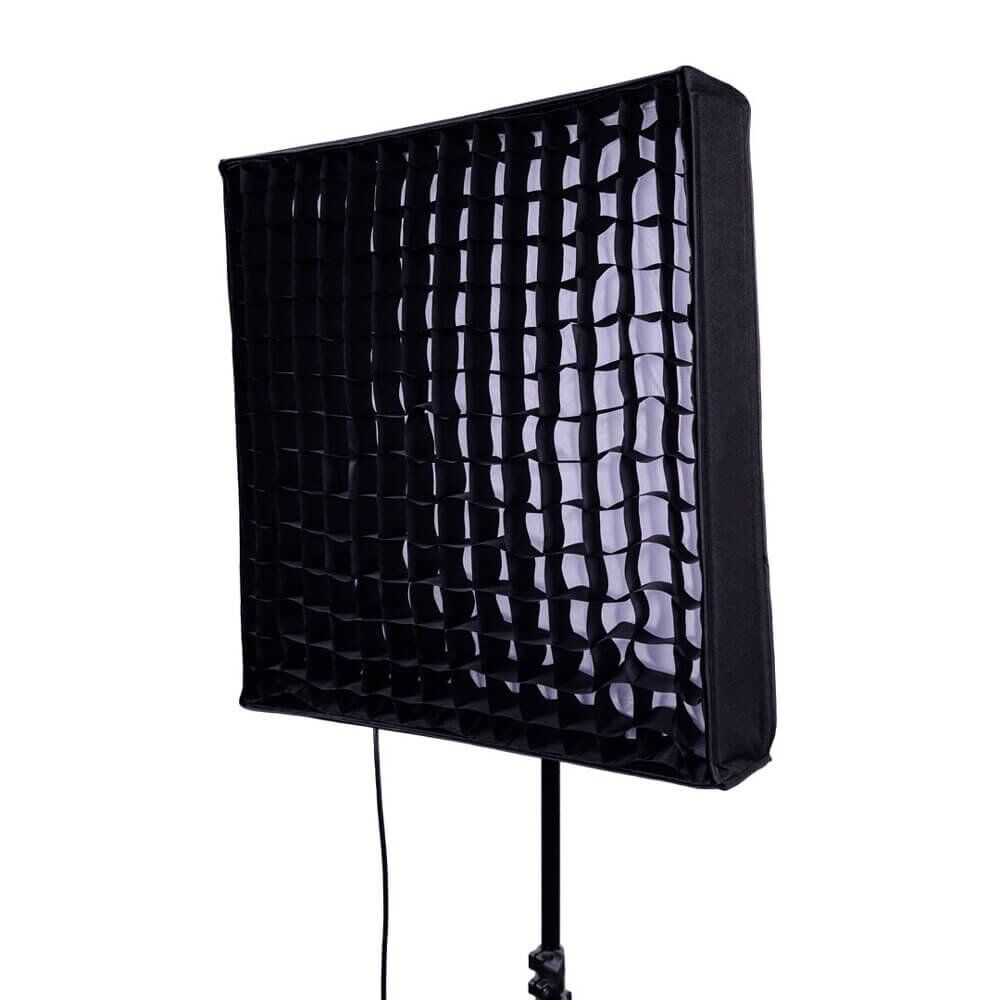

  • Grid
  • Softbox



BeamFlex has two versions: 600*600mm, 300*1200mm

RGBWW and Bi-Color for both versions.

Click here to see the 300*1200mm version.
